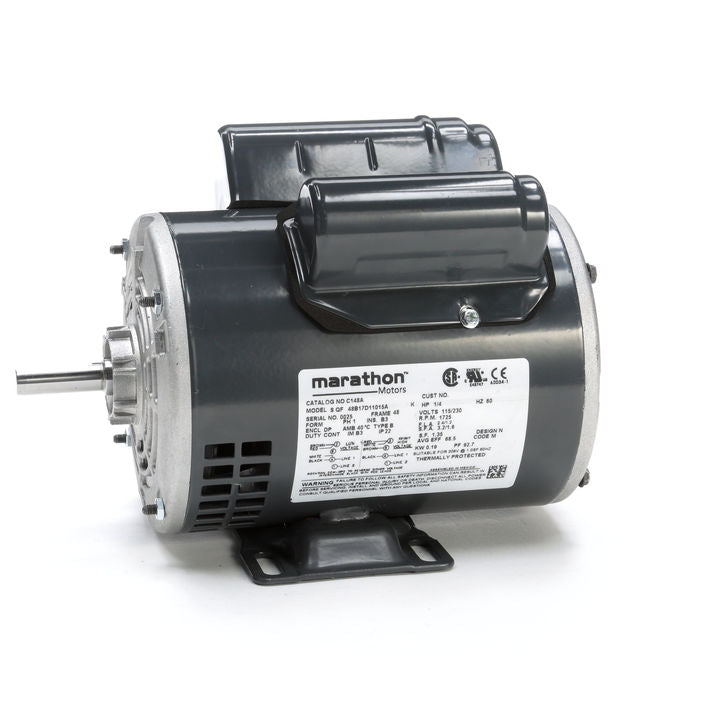

Marathon Electric C148A, 1/4 HP, 1800 RPM, 48 FR, 115/230 V, 1 PH, Dripproof, Rigid Base, General Purpose, 048B17D11015.

C148A, 1/4 HP, 1800 RPM, 48 FR, 115/230 V, 1 PH, Dripproof, Rigid Base, General Purpose, 048B17D11015.

Engineering Data

Output HP : 0.25 Hp
Output KW : 0.19 kW
Frequency : 60 Hz
Voltage : 115/230 V
Current : 2.4/1.2 A
Speed : 1725 rpm
Service Factor : 1.35
Phases : 1
Efficiency : 68.5 %
Duty : CONTINUOUS
Insulation Class : B
Design Code : N
KVA Code : M
Frame : 48
Enclosure : DP
Overload Protector : AUTOMATIC
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y
CE : Y
IP Code : 22

Technical Specifications

Electrical Type : CAP START CAP RUN
Starting Method : ACROSS THE LINE
Poles : 4
Rotation : SELECTIVE CCW
Mounting : RIGID
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp
Drive End Bearing : BALL
Frame Material : ROLLED STEEL
Shaft Type : STANDARD 48
Overall Length : 10.34 in
Frame Length : 6.75 in
Shaft Diameter : 0.5 in
Shaft Extension : 1.59 in
Assembly/Box Mounting : F1 ONLY
