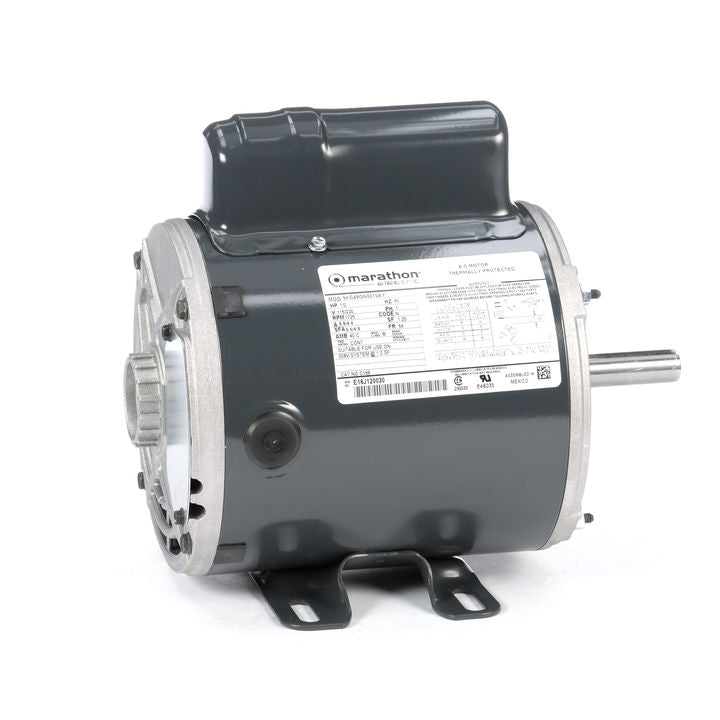

Marathon Electric C169, 1/2 Hp, 1800 Rpm, 56 FR, 115/230 Vac, 1 PH, Dripproof, Rigid Base, General Purpose, Manual Over Load, 5KC49GN0010Y.

** This motor is now a built to order motor, possible replacement is Model# K016**
C169, 1/2 Hp, 1800 Rpm, 56 FR, 115/230 Vac, 1 PH, Dripproof, Rigid Base, General Purpose, Manual Over Load, 5KC49GN0010Y.

Engineering Data

Output HP  0.5 Hp
Output KW  0.37 kW
Frequency  60 Hz
Voltage  115/230 V
Current  8.8,4.4 A
Speed  1725 rpm
Service Factor  1.25
Phases  1
Efficiency  60.9 %
Duty  CONT
Insulation Class  B
KVA Code  N
Frame  56
Enclosure  DP
Overload Protector  MAN
Ambient Temperature  40 °C
Drive End Bearing Size  6203
Opp Drive End Bearing Size  6203
UL  Recognized
CSA  Yes
CE  N

Technical Specifications

Electrical Type  Capacitor start(CSIR)
Starting Method  SM
Poles  4
Rotation  CCW/CW
Mounting  WB
Motor Orientation  ANY
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  Rolled Steel
Overall Length  10.38 in
Frame Length  6.15 in
Shaft Diameter  0.63 in
Shaft Extension  1.88 in
