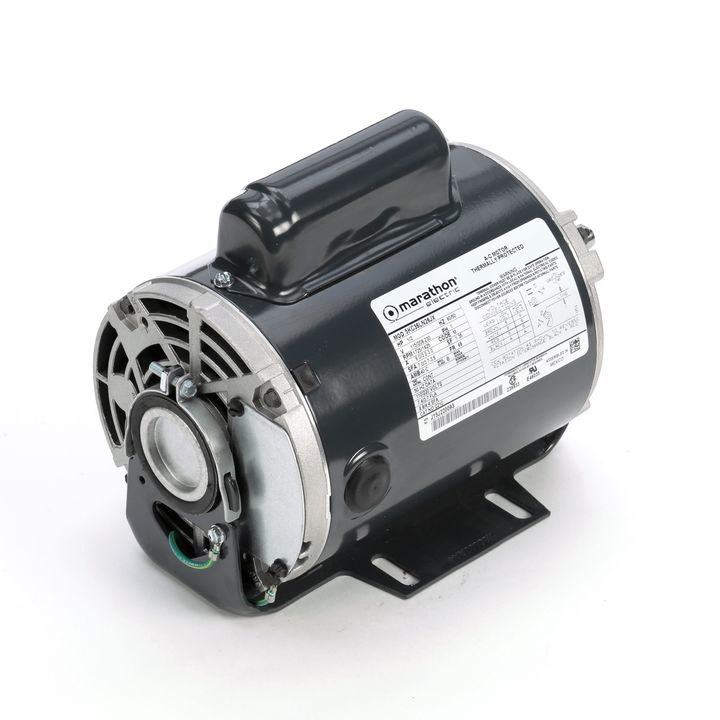

Marathon Electric C208, 1/3 HP, 3450 RPM, 48 FR, 115/230 Vac, 1 PH, Dripproof, Resilient Base, Fan and Blower, 5KC35FN51X.

C208, 1/3 HP, 3450 RPM, 48 FR, 115/230 Vac, 1 PH, Dripproof, Resilient Base, Fan and Blower, 5KC35FN51X.

General Specifications

Model : 5KC35FN51X
Catalog No : C208
Part Description : 1/3,3450,DP,48,1/60/115/230
Category : Open Drip Proof (ODP)
Stock : Yes

Nameplate Specifications

Output HP : 0.33 Hp
Output KW : 0.25 kW
Frequency : 60 Hz
Voltage : 115/230 V
Current : 6.8,3.4 A
Speed : 3450 rpm
Service Factor : 1.35
Phases : 1
Efficiency : 52.5 %
Duty : CONT
Insulation Class : B
Design Code : - KVA
Code : M Frame : 48
Enclosure : DP
Overload Protector : AUTO
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes
CE : N

Technical Specifications

Electrical Type : Capacitor start(CSIR)
Starting Method : SM
Poles : 2
Rotation : CCW/CW
Mounting : RB
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 9.57 in
Frame Length : 5.79 in
Shaft Diameter : 0.5 in
Shaft Extension : 1.5 in
UPC : 722856007339
Weight : 15.00 LB
