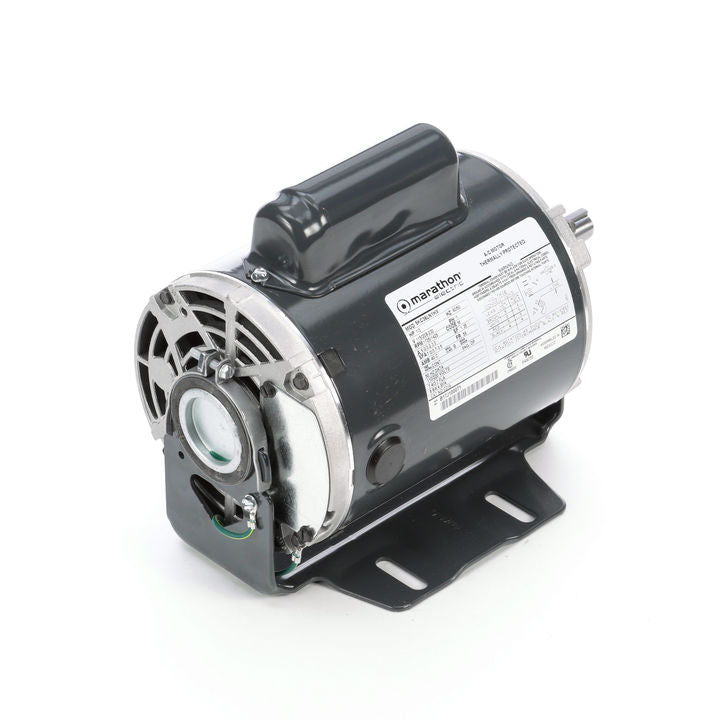

Marathon Electric C216, 1/3 Hp, 1800 Rpm, 56 FR, 115/208-230 Vac, 1 PH, Dripproof, Resilient Base, General Purpose, Auto Over Load, Fan and Duty Motor, 5KC36LN1X

C216, 1/3 Hp, 1800 Rpm, 56 FR, 115/208-230 Vac, 1 PH, Dripproof, Resilient Base, General Purpose, Auto Over Load, Fan and Duty Motor, 5KC36LN1X

Engineering Data

60/50 Hertz
HP 1/3
Voltage 115/208-230
kW 0.25
FL Amps 6.0/3.2-3.0
RPM 1725
FL Eff 62 %
SF 1.35

Nameplate Specifications

Output HP  0.33 Hp
Output KW  0.25 kW
Frequency  60 Hz
Voltage  115/208-230 V
Current  6.0,3.2-3.0 A
Speed  1725 rpm
Service Factor  1.35
Phases  1
Efficiency 62 %
Duty  CONT
Insulation Class  B
KVA Code  M
Frame  56
Enclosure  DP
Overload Protector  AUTO
Ambient Temperature 40 °C
Drive End Bearing Size  6203
Opp Drive End Bearing Size  6203
UL  Recognized
CSA  Yes
CE  N
Technical Specifications

Electrical Type  Capacitor start(CSIR)
Starting Method  SM
Poles  4
Rotation  CCW/CW
Mounting  RB
Motor Orientation  ANY
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  Rolled Steel
Overall Length  10.32 in
Frame Length  6.22 in
Shaft Diameter  0.63 in
Shaft Extension  1.88 in
