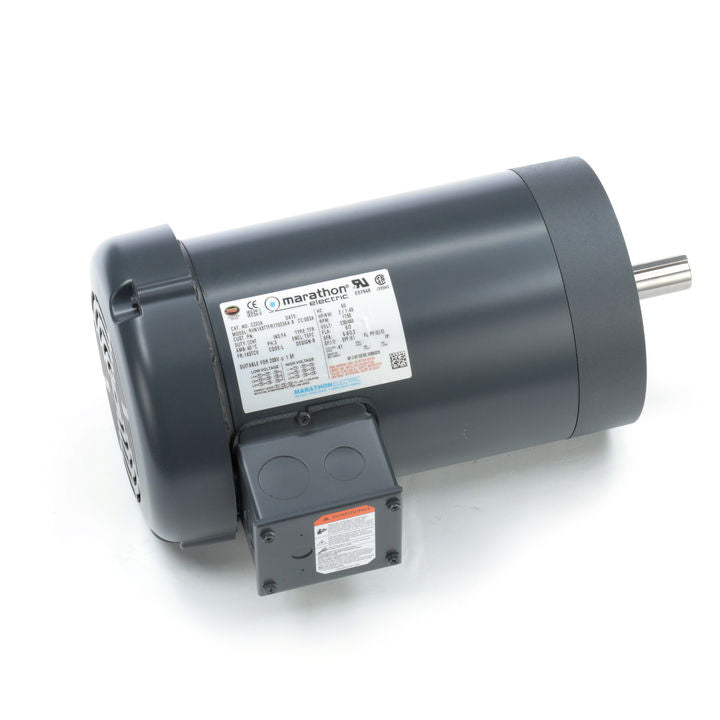

Marathon Electric C222A, 2 Hp, 1800 Rpm, 145TC FR, 230/460 Vac, 3 PH, TEFC, C-Face Footless, General Purpose Motor, 145TTFR17033

C222A, 2 Hp, 1800 Rpm, 145TC FR, 230/460 Vac, 3 PH, TEFC, C-Face Footless, General Purpose Motor, 145TTFR17033

Engineering Data

Output HP :2 HP
Output KW :1.5 kW
Frequency :60 Hz
Voltage :230/460 V
Current :6.0/3.0 A
Speed :1750 RPM
Service Factor :1.15
Phase :3
Efficiency :86.5 %
Duty :Continuous
Insulation Class :F
Design Code :B
KVA Code :L
Frame :145TC
Enclosure :Totally Enclosed Fan Cooled
Overload Protector :No
Ambient Temperature :40 °C
Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203
UL :Recognized
CSA :YCE :YIP Code :43
Technical Specifications
Electrical Type :Squirrel Cage Induction Run
Starting Method :Across The Line
Poles :4
Rotation :Reversible
Mounting :Round
Motor Orientation :Horizontal Or Shaft Down
Drive End Bearing :Ball
Opp Drive End Bearing :Ball
Frame Material :Rolled Steel
Shaft Type :T
Overall Length :13.92 in
Frame Length :8.00 in
Shaft Diameter :0.875 in
Shaft Extension :2.12 in
Assembly/Box Mounting :F1 ONLY
UPC :722856050502
