Industrial Motors

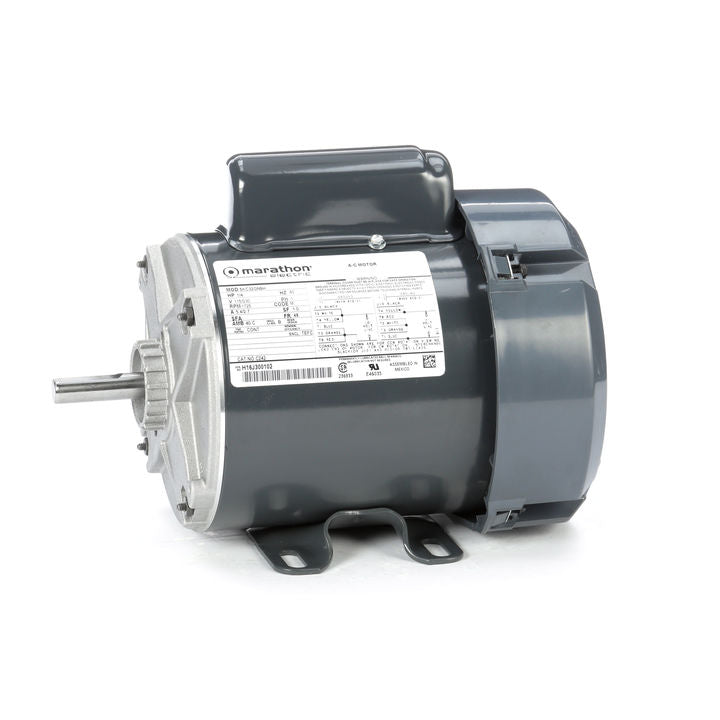

Marathon Electric C242, 1/4 Hp, 1800 Rpm, 48 FR, 115/230 Vac, 1 PH, TEFC, Rigid Base, General Purpose, No over load, 5KC32GN9.

Marathon Electric C242, 1/4 Hp, 1800 Rpm, 48 FR, 115/230 Vac, 1 PH, TEFC, Rigid Base, General Purpose, No over load, 5KC32GN9.

$722.00
$722.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$722.00 $685.90
Sale

C242, 1/4 Hp, 1800 Rpm, 48 FR, 115/230 Vac, 1 PH, TEFC, Rigid Base, General Purpose, No over load, 5KC32GN9.

Engineering Data

60 Hertz
HP 1/4
Voltage 115/230
kW N/A FL Amps 5.4/2.7
RPM 1725
FL Eff 0 % SF 1.0

Phase 1
Insulation Class B
Frame 48
Duty Continuous
Enclosure TEFC
Ambient 40
Mounting WB NEMA Design
Orientation Horizontal or Vertical
Starting Type Switch and Mech
Assembly N/A KVA Code M
Drive End Bearing BALL
IP Code N/A
Opposite End Bearing BALL
Drive End Bearing Size 17MM
Rotation Select Counter clockwise
Opposite End Bearing Size 17MM
Hazardous Location N/R
Weight 16.2 LB lbs
CE N/A CSA Y
UL Y
Thermal Protection None
