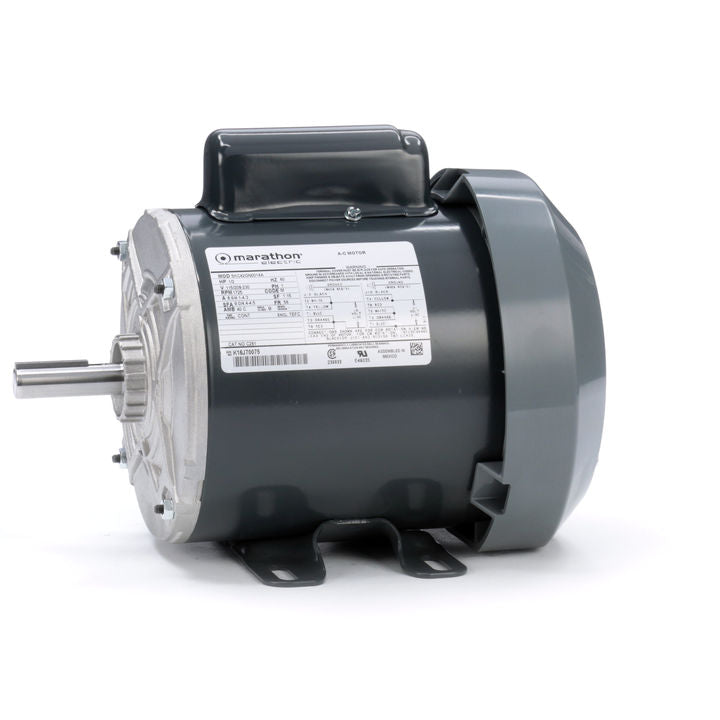

Marathon Electric C261, 1/2 Hp, 1800 Rpm, 56 FR, 115/208-230 Vac, 1 PH, TEFC, Rigid Base, General Purpose, No Overload, 5KC42GN0014

Marathon Electric C261, 1/2 Hp, 1800 Rpm, 56 FR, 115/208-230 Vac, 1 PH, TEFC, Rigid Base, General Purpose, No Overload, 5KC42GN0014

$779.00
$779.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$779.00 $740.05
Sale

C261, 1/2 Hp, 1800 Rpm, 56 FR, 115/208-230 Vac, 1 PH, TEFC, Rigid Base, General Purpose, No Overload, 5KC42GN0014

Nameplate Specifications

Output HP  0.5 Hp
Output KW  0.37 kW
Frequency  60 Hz
Voltage  115/208-230 V
Current  8.6,4.1-4.3 A
Speed  1725 rpm
Service Factor  1.15
Phases  1
Efficiency  64.9 %
Duty  CONT
Insulation Class  B
Design Code  -
KVA Code  M
Frame  56
Enclosure  TEFC
Overload Protector  N/R
Ambient Temperature 40 °C
Drive End Bearing Size  6203
Opp Drive End Bearing Size  6203
UL  Recognized
CSA  Yes
CE  N
Technical Specifications

Electrical Type  Capacitor start(CSIR)
Starting Method  SM
Poles  4
Rotation  CCW/CW
Mounting  WB
Motor Orientation  ANY
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  Rolled Steel
Overall Length  11 in
Frame Length  5.72 in
Shaft Diameter  0.63 in
Shaft Extension  1.88 in
