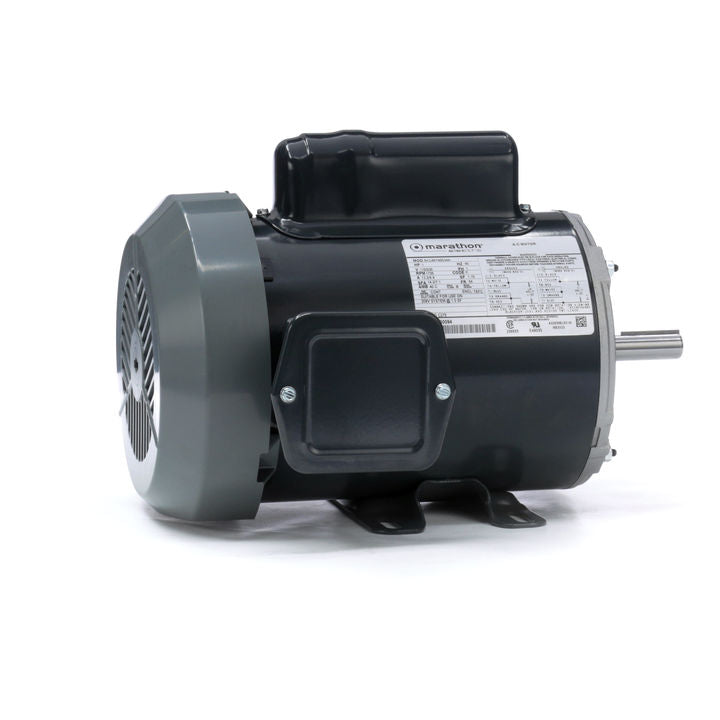

Marathon Electric C275, 1 Hp, 1800 Rpm, 56 FR, 115/230 Vac, 1 PH, TEFC, Rigid Base, General Purpose, No Overload, 5KC49TN0034

C275, 1 Hp, 1800 Rpm, 56 FR, 115/230 Vac, 1 PH, TEFC, Rigid Base, General Purpose, No Overload, 5KC49TN0034

Engineering Data

Output HP  1 Hp
Output KW  0.75 kW
Frequency  60 Hz
Voltage  115/230 V
Current  13.2,6.6 A
Speed  1725 rpm
Service Factor  1.15
Phases  1
Efficiency  72.2 %
Duty  CONT
Insulation Class  B
KVA Code  K
Frame  56
Enclosure  TEFC
Overload Protector  N/R
Ambient Temperature  40 °C
Drive End Bearing Size  6203
Opp Drive End Bearing Size  6203
UL  Recognized
CSA  Yes
CE  N
IP Code  43

Technical Specifications

Electrical Type  Capacitor start(CSIR)
Starting Method  SM
Poles  4
Rotation  CCW/CW
Mounting  WB
Motor Orientation  ANY
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  Rolled Steel
Overall Length  12.96 in
Frame Length  7.68 in
Shaft Diameter 0.63 in
Shaft Extension  1.88 in
