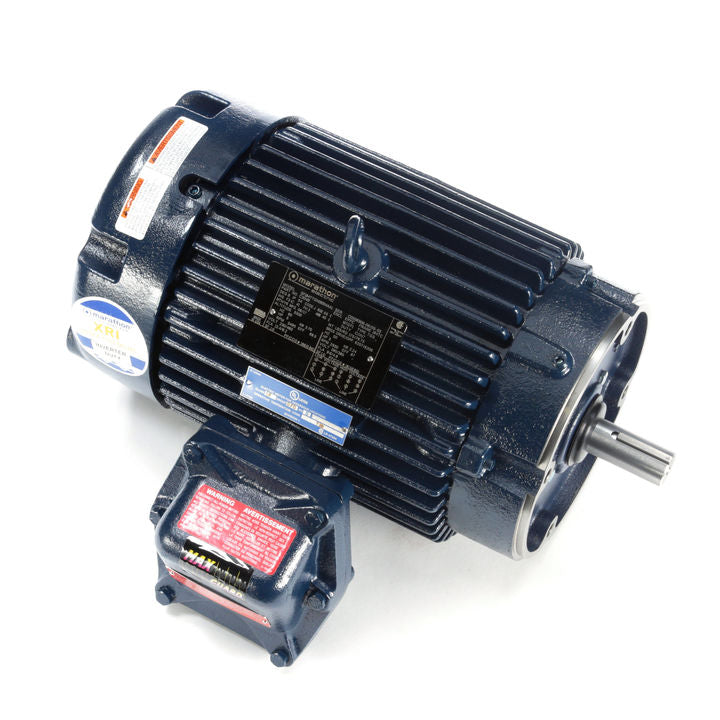

Marathon Electric C304B, 5 Hp, 3600 Rpm, 184TC FR, 230/460 Vac, 3 PH, TEFC, C-Face Footless, Hazardous Duty, Explosion Proof, 184TTGN16004

C304B, 5 Hp, 3600 Rpm, 184TC FR, 230/460 Vac, 3 PH, TEFC, C-Face Footless, Hazardous Duty, Explosion Proof, 184TTGN16004

Engineering Data

Output HP :5 HP
Output KW :3.7 kW
Frequency :60 Hz
Voltage :230/460 V
Current :12.4/6.2 A
Speed :3495 RPM
Service Factor :1
Phase :3
Efficiency :88.5 %
Duty :Continuous
Insulation Class :F
Design Code :BKV
A Code :J
Frame :184TC
Enclosure :Explosion Proof Fan cooled
Overload Protector :No
Ambient Temperature :40 °C
Drive End Bearing Size :6207
Opp Drive End Bearing Size :6206
UL :UL Listed; also, UL Certified for Canada
CSA :N
CE :NIP Code :54
Technical Specifications
Electrical Type :Squirrel Cage Induction Run
Starting Method :Across The Line
Poles :2
Rotation :Reversible
Mounting :Round
Motor Orientation :Horizontal
Drive End Bearing :Ball
Opp Drive End Bearing :Ball
Frame Material :Cast Iron
Shaft Type :T
Overall Length :18.62 in
Frame Length :10.00 in
Shaft Diameter :1.125 in
Shaft Extension :2.62 in
Assembly/Box Mounting :F1 ONLY
UPC :722856050663
