Industrial Motors

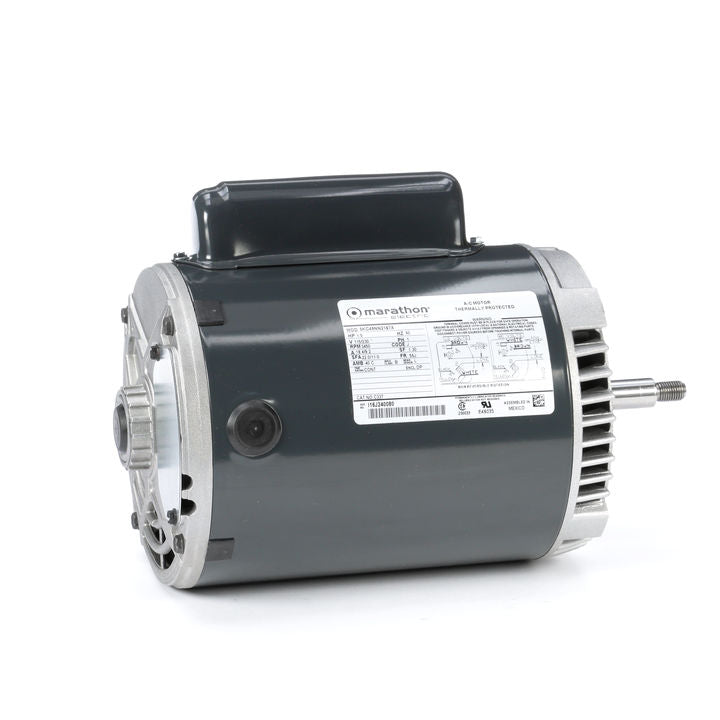

Marathon Electric C337, 5KC49NN2167X, 1 1/2 Hp, 3600 Rpm, 56JFR, 115/230 Vac, 1 PH, Dripproof, C-Face Footless, Centrifugal Pump (Jet Pump)

Marathon Electric C337, 5KC49NN2167X, 1 1/2 Hp, 3600 Rpm, 56JFR, 115/230 Vac, 1 PH, Dripproof, C-Face Footless, Centrifugal Pump (Jet Pump)

$830.00
$830.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$830.00 $788.50
Sale

C337, 5KC49NN2167X, 1 1/2 Hp, 3600 Rpm, 56JFR, 115/230 Vac, 1 PH, Dripproof, C-Face Footless, Centrifugal Pump (Jet Pump).

Engineering Data

Output HP:1.5 Hp
Output KW:1.1 kW
Frequency:60 Hz
Voltage:115/230 V
Current:18.4,9.2 A
Speed:3450 rpm
Service Factor:1.3
Phase:1
Efficiency:72 %
Power Factor:0
Duty:Continuous
Insulation Class:B
Design Code:L
KVA Code:J
Thermal Protection:AUTO
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Yes
CE:N
Technical Specifications
Electrical Type:Capacitor Start Induction Run
tarting Method:SM
Poles:2
Rotation:Clockwise
Mounting:Round
Motor Orientation:ANY
Drive End Bearing:LOCKED
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Overall Length:11.89 in
Frame Length:7.15 in
Shaft Diameter:0.63 in
