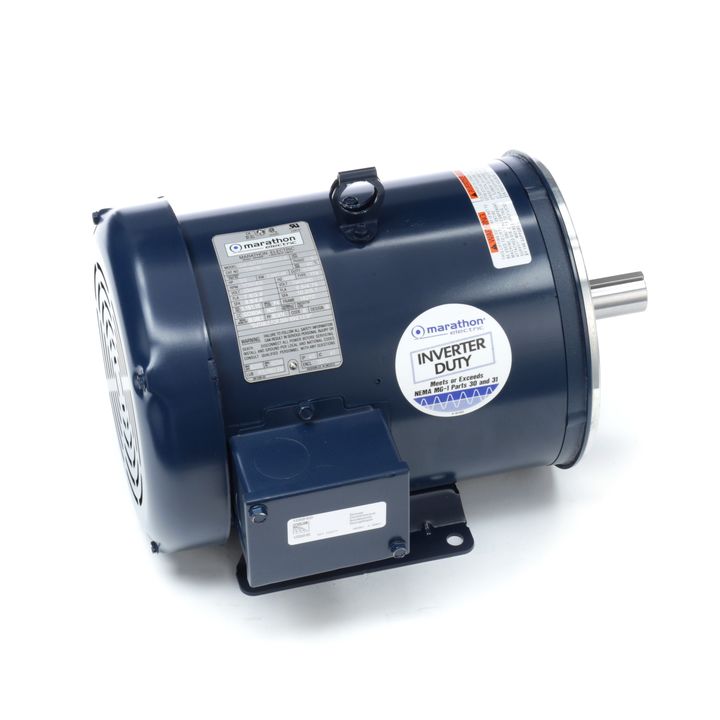

Marathon Electric C384B, 3 Hp, 1200 Rpm, 213TC FR, 208-230/460, 3 PH, C-Face Footed, Hazardous Duty Motor, 213TTFWD16078

C384B, 3 Hp, 1200 Rpm, 213TC FR, 208-230/460, 3 PH, C-Face Footed, Hazardous Duty Motor, 213TTFWD16078

Engineering Data

Output HP : 3 HP
Output KW : 2.2 kW
Frequency : 60 Hz
Voltage : 208-230/460
Current : 9.2-8.8/4.4 A
Speed : 1175 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 89.5 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : K
Frame : 213TCV
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6309
Opp Drive End Bearing Size : 6206
UL : Recognized
CSA : Y CE : Y IP Code : 43
Technical Specifications
Electrical Type : Squirrel Cage Induction Run
Starting Method : Across The Line
Poles : 6
Rotation : Reversible
Mounting : Rigid base
Motor Orientation : HORIZONTAL OR UP OR DOWN
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Shaft Type : T
Overall Length : 19.47 in
Frame Length : 9.65 in
Shaft Diameter : 1.375 in
Shaft Extension : 3.12 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856066602
Weight : 121.00 LB
