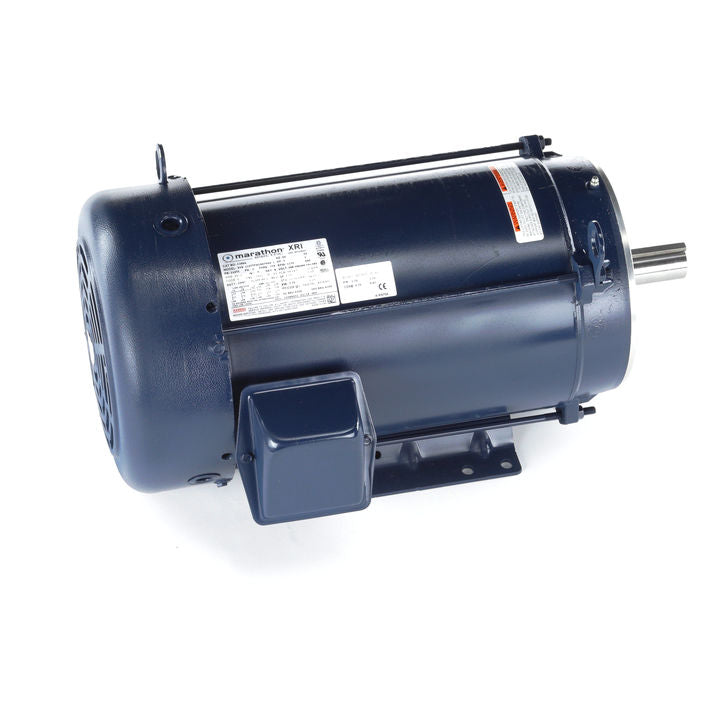

Marathon Electric C389A, 7 1/2 Hp, 3600 Rpm, 213TC FR, 230/460 Vac, 3 PH, C-Face Footed, Hazardous Duty Motor, 213TTFW16008

C389A, 7 1/2 Hp, 3600 Rpm, 213TC FR, 230/460 Vac, 3 PH, C-Face Footed, Hazardous Duty Motor, 213TTFW16008

Engineering Data

Output HP : 7.50 HP
Output KW : 5.6 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 17.8/8.9 A
Speed : 3540 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 90.2 %
Duty : Continous
Insulation Class : F
Design Code : B
KVA Code : H
Frame : 213TCV
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6309
Opp Drive End Bearing Size : 6206
UL : Recognized
CSA : Y CE : Y IP Code : 43
Technical Specifications
Electrical Type : Squirrel Cage Induction Run
Starting Method : Across The Line
Poles : 2
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal Or Up Or Down
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : T
Overall Length : 20.97 in
Frame Length : 11.15 in
Shaft Diameter : 1.375 in
Shaft Extension : 3.12 in
Assembly/Box Mounting : F1/F2 Capable
UPC : 722856016225
Weight : 155.00 LB
