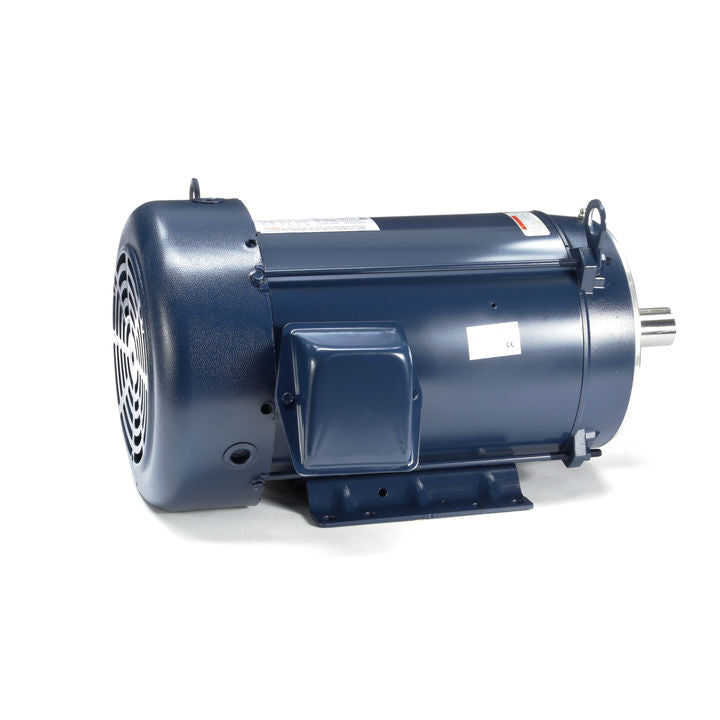

Marathon Electric C393B, 10 Hp, 3600 Rpm, 215TC FR, 208-230/460 Vac, C-Face Footed, Hazardous Duty Motor, 215TTFWD16041

C393B, 10 Hp, 3600 Rpm, 215TC FR, 208-230/460 Vac, C-Face Footed, Hazardous Duty Motor, 215TTFWD16041

General Specifications

Model : 215TTFWD16041
Catalog No : C393B
Part Description : 10,1800,TEFC,215TC,3/60/208-230/460
Category : Totally Enclosed Fan Cooled (TEFC)
Stock : Yes

Nameplate Specifications

Output HP : 10 Hp
Output KW : 7.5 kW
Frequency : 60 Hz
Voltage : 208-230/460 V
Current : 14-26.4/13.2 A
Speed : 1760 rpm
Service Factor : 1.15
Phases : 3
Efficiency : 91.7 %
Duty : CONTINUOUS
Insulation Class : F
Design Code : B
KVA Code : H
Frame : 215TC
Enclosure : TEFC
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6309
Opp Drive End Bearing Size : 6206
UL : Recognized
CSA : Y
CE : Y
IP Code : 43

Technical Specifications

Electrical Type : SQ CAGE IND
RUN Starting Method : ACROSS THE LINE
Poles : 4
Rotation : REV
Mounting : BOLT-ON
Motor Orientation : HORIZONTAL OR SHAFT DOWN
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL
Shaft Type : T
Overall Length : 20.97 in
Frame Length : 11.15 in
Shaft Diameter : 1.38 in
Shaft Extension : 3.12 in
Assembly/Box Mounting : F1 ONLY
