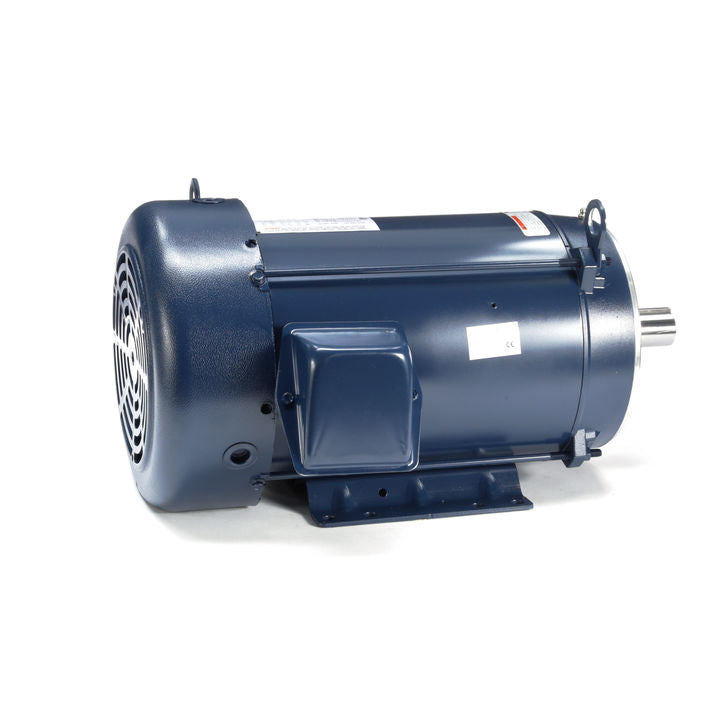

Marathon Electric C400A, 1 Hp, 1200 Rpm, 145TC FR, 230/460 V, 3 PH, C-Face Footed, Brake Motor, 145TTFR16092

C400A, 1 Hp, 1200 Rpm, 145TC FR, 230/460 V, 3 PH, C-Face Footed, Brake Motor, 145TTFR16092

General Specifications

Model : 145TTFR16092
Catalog No : C400A
Part Description : 1,1200,TEFC,145TC,3/60/230/460
Category : Brake
Stock : Yes

Nameplate Specifications

Output HP : 1 Hp
Output KW : .75 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 4/2 A
Speed : 1140 rpm
Service Factor : 1.15
Phases : 3
Efficiency : 77 %
Duty : CONTINUOUS
Insulation Class : F
Design Code : B
KVA Code : K
Frame : 145TC
Enclosure : TEFC
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y
CE : N
IP Code : 43

Technical Specifications

Electrical Type : SQ CAGE IND RUN
Starting Method : ACROSS THE LINE
Poles : 6 Rotation : REV
Mounting : BOLT-ON
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL
Shaft Type : T
Overall Length : 17.26 in
Frame Length : 7.56 in
Shaft Diameter : .88 in
Shaft Extension : 2.12 in
Assembly/Box Mounting : F1
ONLY UPC : 722856027580
