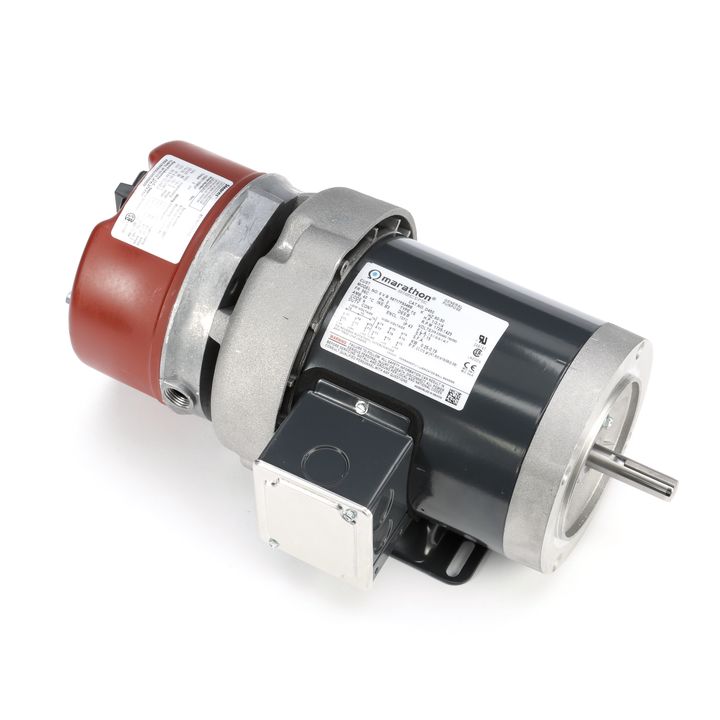

Marathon Electric C402A, 1 1/2 HP, 1200 RPM, 184TC FR, 230/460 Vac, 3 PH, C-Face Footed, Brake Motor, 184TTTY16076.

C402A, 1 1/2 HP, 1200 RPM, 184TC FR, 230/460 Vac, 3 PH, C-Face Footed, Brake Motor, 184TTTY16076.

General Specifications

Model : 184TTTY16076
Catalog No : C402A
Part Description : 1 1/2,1800,TEFC,145TC,3/60/230/460
Category : Brake
Stock : Yes

Nameplate Specifications

Output HP : 1.5 Hp
Output KW : 1.12 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 4.8/2.4 A
Speed : 1735 rpm
Service Factor : 1.15
Phases : 3
Efficiency : 80 %
Duty : CONTINUOUS
Insulation Class : B
Design Code : B
KVA Code : K
Frame : 184TC
Enclosure : TEFC
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y
CE : Y
IP Code : 43

Technical Specifications

Electrical Type : SQ CAGE IND RUN
Starting Method : ACROSS THE LINE
Poles : 4
Rotation : REV
Mounting : RIGID
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL
Shaft Type : T
Overall Length : 18.76 in
Frame Length : 7.06 in
Shaft Diameter : .88 in
Shaft Extension : 2.12 in
Assembly/Box Mounting : F1
ONLY UPC : 722856027597
