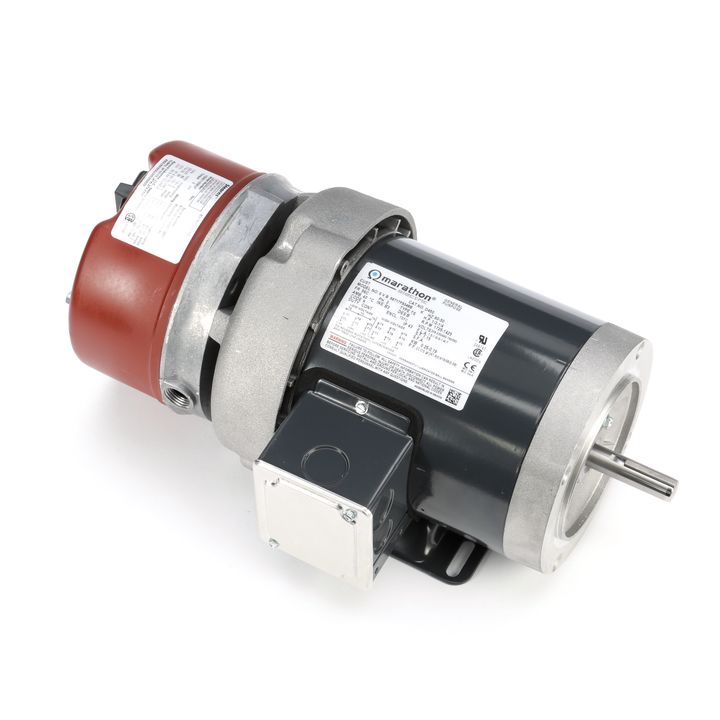

Marathon Electric C404A, 2 Hp, 1200 Rpm, 184TC FR, 230/460 Vac, 3 PH, C-Face Footed, Brake Motor, 184TTTY16033

C404A, 2 Hp, 1200 Rpm, 184TC FR, 230/460 Vac, 3 PH, C-Face Footed, Brake Motor, 184TTTY16033

Engineering Data

Output HP : 2 Hp
Output KW : 1.49 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 6.6/3.3 A
Speed : 1160 rpm
Service Factor : 1.15
Phases : 3
Efficiency : 82.5 %
Duty : CONTINUOUS
Insulation Class : F
Design Code : B
KVA Code : L
Frame : 184TC
Enclosure : TENV
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6207
Opp Drive End Bearing Size : 6206
UL : Recognized
CSA : Y
CE : Y
IP Code : 43

Technical Specifications

Electrical Type : SQ CAGE IND RUN
Starting Method : ACROSS THE LINE
Poles : 6
Rotation : REV
Mounting : RIGID
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : ALUMINUM
Shaft Type : T
Overall Length : 19.23 in
Frame Length : 6.75 in
Shaft Diameter : 1.13 in
Shaft Extension : 2.75 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856027627
