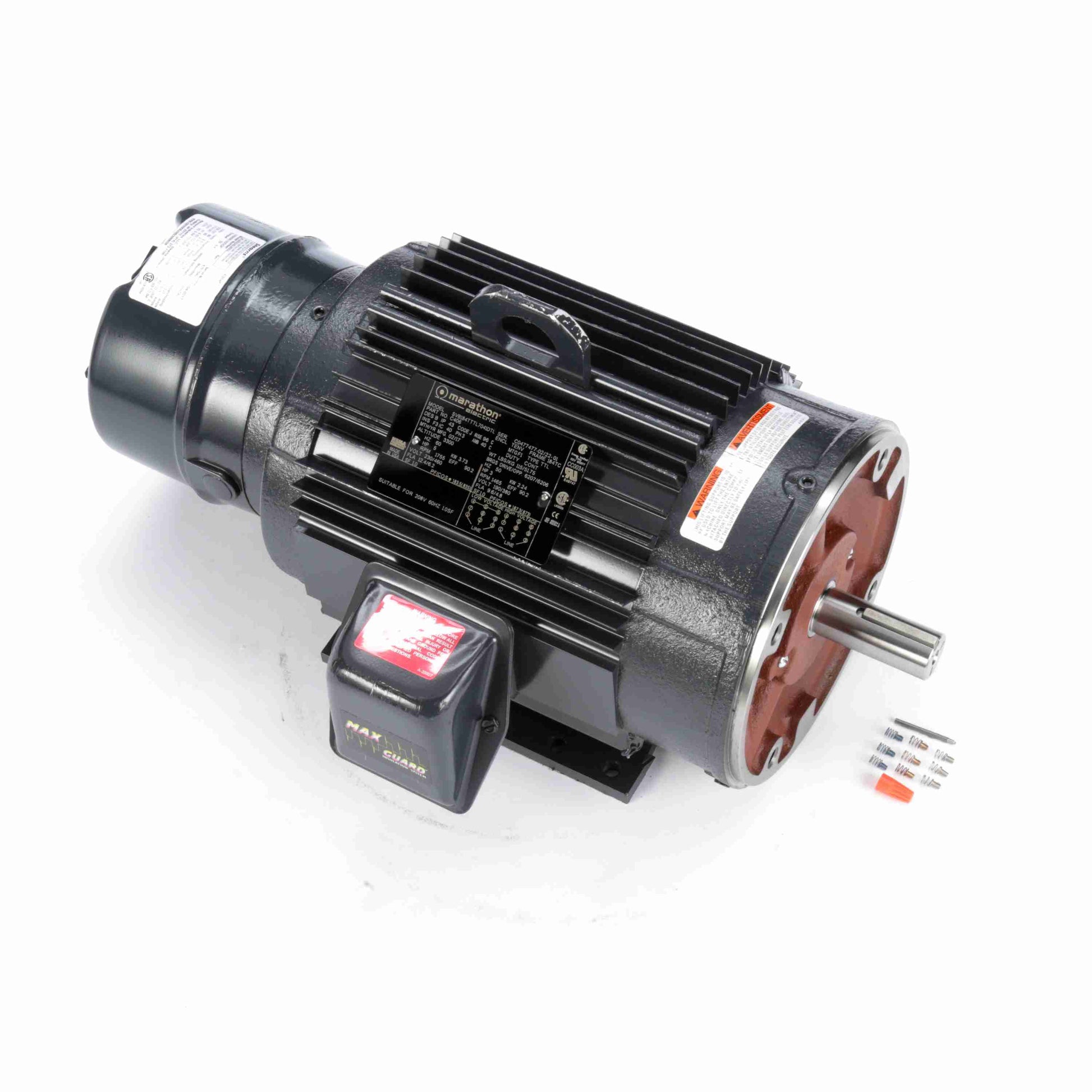

Marathon Electric C407A, 7 1/2 Hp, 1800 Rpm, 213TC FR, 230/460 Vac, 3 PH, C-Face Footed, Brake Motor, 213TTTL16038

C407A, 7 1/2 Hp, 1800 Rpm, 213TC FR, 230/460 Vac, 3 PH, C-Face Footed, Brake Motor, 213TTTL16038

General Specifications

Model : 213TTTL7034
Catalog No : C407
Part Description : 7 1/2,1800,TENV,213TC,3/60/230/460
Category : Brake
Stock : Yes

Nameplate Specifications

Output HP : 7.5 Hp
Output KW : 5.60 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 19.2/9.6 A
Speed : 1770 rpm
Service Factor : 1
Phases : 3
Efficiency : 91 %
Duty : CONTINUOUS
Insulation Class : F
Design Code : B
KVA Code : H
Frame : 213TC
Enclosure : TENV
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6309
Opp Drive End Bearing Size : 6307
UL : Recognized
CSA : Y
CE : Y
IP Code : 43

Technical Specifications

Electrical Type : SQ CAGE IND RUN
Starting Method : ACROSS THE LINE
Poles : 4
Rotation : REV
Mounting : RIGID
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : ALUMINUM
Shaft Type : T
Overall Length : 27.04 in
Frame Length : 11.15 in
Shaft Diameter : 1.38 in
Shaft Extension : 3.38 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856027658
