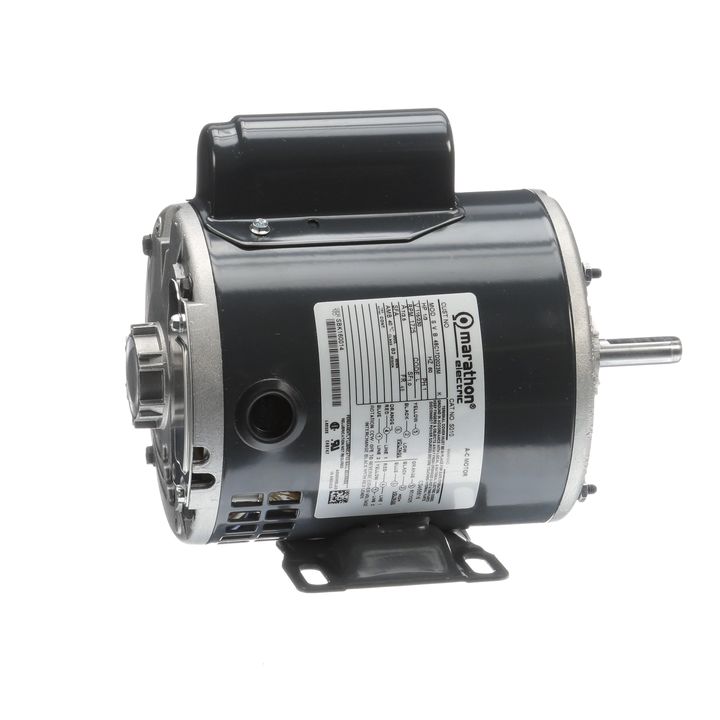

Marathon Electric C449, 1 HP, 3600 RPM, 56Z FR, 115/230 Vac, 1 PH, Dripproof, Rigid Base, Special Purpose, 5KC37NN160

C449, 1 HP, 3600 RPM, 56Z FR, 115/230 Vac, 1 PH, Dripproof , Rigid Base, Special Purpose, 5KC37NN160

General Specifications

Model : 5KC37NN160
Catalog No : C449
Part Description : 1,3600,DP,56Z,1/60/115/230
Category : Open Drip Proof (ODP)
Stock : Yes

Nameplate Specifications

Output HP : 1 Hp
Output KW : 0.75 kW
Frequency : 60 Hz
Voltage : 115/230 V
Current : 13.4,6.7 A
Speed : 3450 rpm
Service Factor : 1
Phases : 1
Efficiency : 68 %
Duty : CONT
Insulation Class : B
KVA Code : J
Frame : 56Z
Enclosure : DP
Overload Protector : N/R
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes
CE : N

Technical Specifications

Electrical Type : Capacitor start(CSIR)
Starting Method : SM
Poles : 2
Rotation : CCW/CW
Mounting : WB
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 12.57 in
Frame Length : 6.62 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.88 in
UPC : 722856007001
Weight : 20.00 LB
