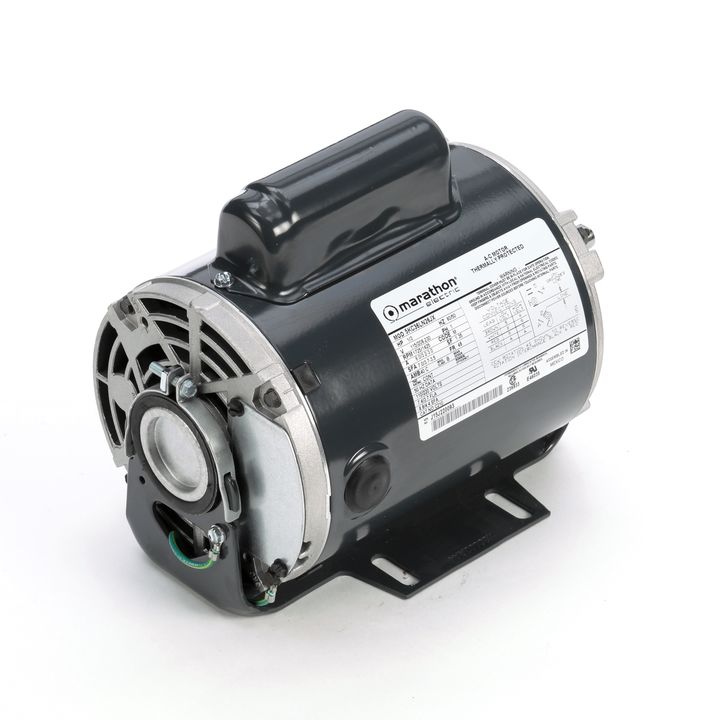

Marathon Electric C457, 1/3 HP, 1500 RPM, 56 FR, 110/220 Vac, 1 PH, Dripproof, Resilient Base, Fan and Blower, 5KC37NN14T.

C457, 1/3 HP, 1500 RPM, 56 FR, 110/220 Vac, 1 PH, Dripproof, Resilient Base, Fan and Blower, 5KC37NN14T.

General Specifications

Model : 5KC37NN14T
Catalog No : C457
Part Description : 1/3,1425,DP,56,1/50/110/220
Category : Open Drip Proof (ODP)
Stock : Yes

Nameplate Specifications

Output HP : 0.33 Hp
Output KW : 0.25 kW
Frequency : 50 Hz
Voltage : 110/220 V
Current : 7.4,3.7 A
Speed : 1425 rpm
Service Factor : 1.35
Phases : 1
Efficiency : 59.5 %
Duty : CONT
Insulation Class : B
KVA Code : M
Frame : 56
Enclosure : DP
Overload Protector : AUTO
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes
CE : N

Technical Specifications

Electrical Type : Capacitor start(CSIR)
Starting Method : SM
Poles : 4
Rotation : CCW/CW
Mounting : RB
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 10.72 in
Frame Length : 6.62 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.88 in
UPC : 722856007377
Weight : 20.00 LB
