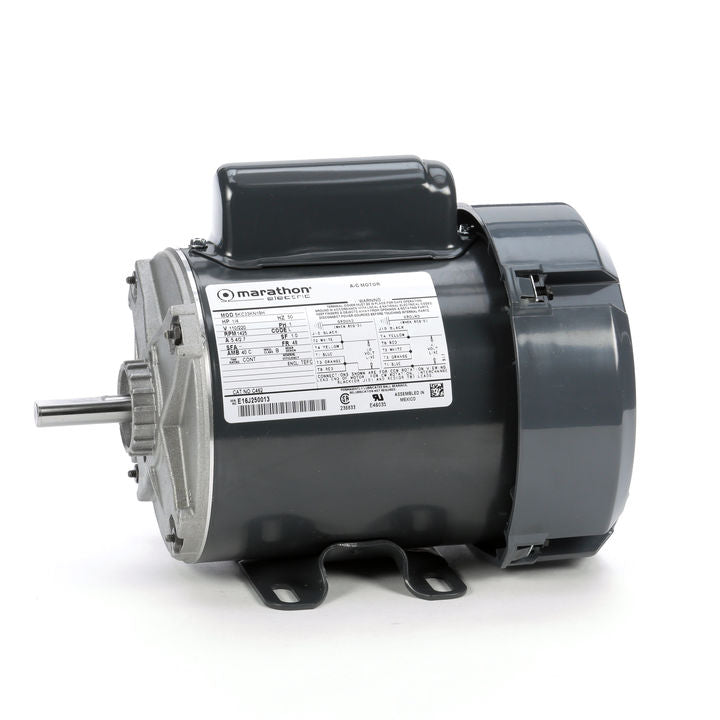

Marathon Electric C462, 1/4 Hp, 1500 Rpm, 48 FR, 110/220 Vac, 1 PH, TEFC, Rigid Base, General Purpose, 5KC33KN19

Marathon Electric C462, 1/4 Hp, 1500 Rpm, 48 FR, 110/220 Vac, 1 PH, TEFC, Rigid Base, General Purpose, 5KC33KN19

$838.00
$838.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$838.00 $796.10
Sale
Featured Products is no longer manufacturing this motor, possible replacement is the following Featured Products part# G1312

**This motor has been replaced by Model# G1312, only 60 HZ**
C462, 1/4 Hp, 1500 Rpm, 48 FR, 110/220 Vac, 1 PH, TEFC, Rigid Base, General Purpose, 5KC33KN19

Engineering Data

50 Hertz
HP 1/4
Voltage 110/220
kW N/A
FL Amps 5.4/2.7
RPM 1425
FL Eff 0 % SF 1.0

Phase 1
Insulation Class B
Frame 48
Duty Continuous
Enclosure TEFC
Ambient 40
Mounting WB NEMA Design N/A
Orientation Horizontal or Vertical
Starting Type Switch and Mech
Assembly N/A KVA Code L
Drive End Bearing BALL IP Code N/A
Opposite End Bearing BALL
Drive End Bearing Size 17MM
Rotation Select Counter clockwise
Opposite End Bearing Size 17MM
Hazardous Location N/R
Weight 17.8 LB lbs
CE N/A CSA Y
UL Y
Thermal Protection None
