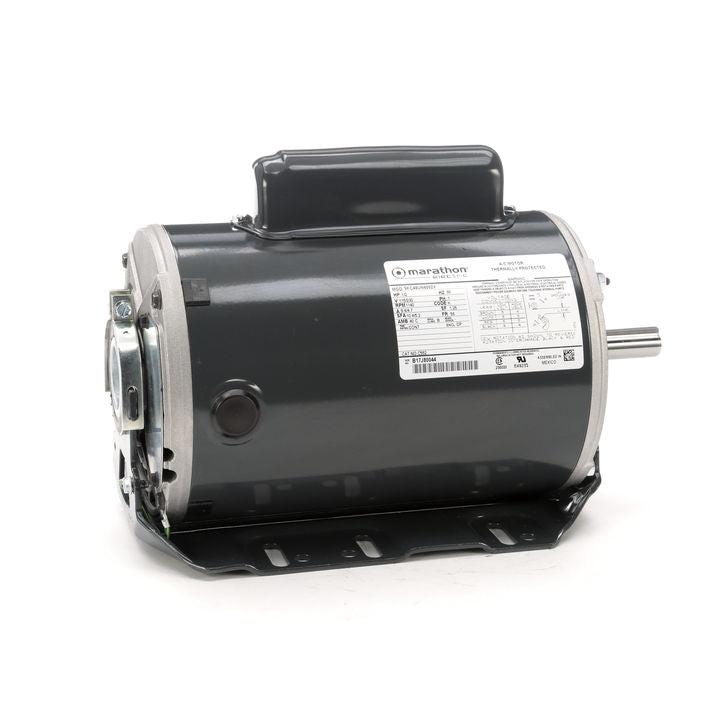

Marathon Electric C552, 1/2 HP, 1140 RPM, 56 FR, 115/230 Vac, 1 PH, Dripproof, Resilient Base, Fan & Blower, 5KC48UN6052X

C552, 1/2 HP, 1140 RPM, 56 FR, 115/230 Vac, 1 PH, Dripproof, Resilient Base, Fan & Blower, 5KC48UN6052X

Engineering Data

General Specifications
Model : 5KC48UN6052X
Catalog No : C552
Part Description : 1/2,1140,DP,56,1/60/115/230
Category : Open Drip Proof (ODP)
Stock : Yes

Nameplate Specifications

Output HP : 0.5 Hp
Output KW : 0.37 kW
Frequency : 60 Hz
Voltage : 115/230 V
Current : 9.4,4.7 A
Speed : 1140 rpm
Service Factor : 1.25
Phases : 1
Efficiency : 57.5 %
Duty : CONT
Insulation Class : B
Design Code : - KVA
Code : K Frame : 56
Enclosure : DP
Overload Protector : AUTO
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes
CE : N

Technical Specifications

Electrical Type : Capacitor start(CSIR)
Starting Method : SM
Poles : 6
Rotation : CCW/CW
Mounting : RB
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 12.76 in
Frame Length : 8.43 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.88 in
UPC : 722856007407
Weight : 36.00 LB
