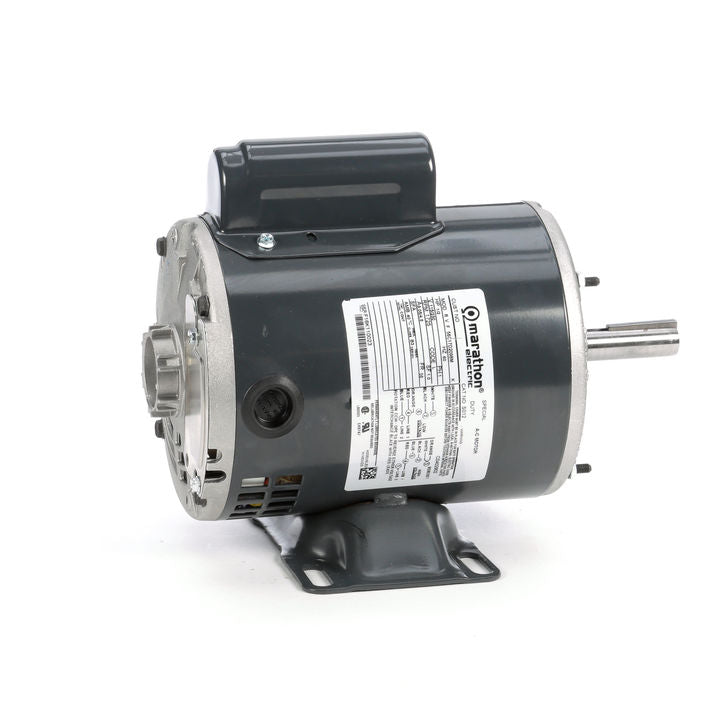

Marathon Electric C636 5KC49NN0019X, 1 HP, 1725 RPM, 56 FR, 115/230 V, 1 PH, Dripproof , Resilient Base, Fan & Blower

Marathon Electric C636 5KC49NN0019X, 1 HP, 1725 RPM, 56 FR, 115/230 V, 1 PH, Dripproof , Resilient Base, Fan & Blower

General Specifications

Model : 5KC49NN0019X
Catalog No : C636
Part Description : 1,1725,DP,56,1/60/115/230
Category : Open Drip Proof (ODP)
Stock : No

Nameplate Specifications

Output HP : 1 Hp
Output KW : .75 kW
Frequency : 60 Hz
Voltage : 115/230 V
Current : 14.4 A
Speed : 1725 rpm
Service Factor : 1
Phases : 1
Efficiency : 69 %
Duty : CONT
Insulation Class : B
KVA Code : K
Frame : 56
Enclosure : DP
Overload Protector : AUTO
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y
CE : N

Technical Specifications

Electrical Type : Capacitor start(CSIR)
Starting Method : SM
Poles : 4
Rotation : CCW/CW
Mounting : RB Motor
Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Overall Length : 11.38 in
Frame Length : 7.15 in
Shaft Extension : .625 X 1.88 - .188 X .188 KEY in
