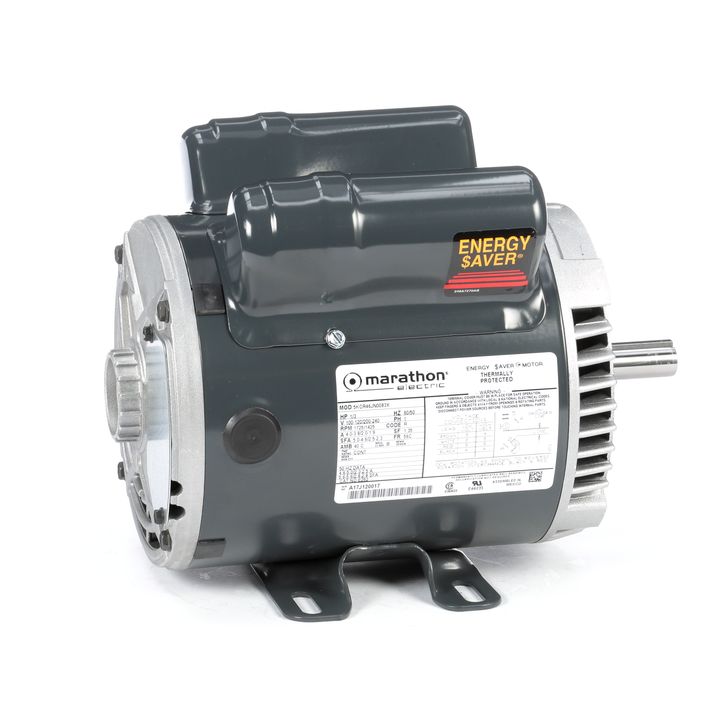

Marathon Electric C661, 1/2 Hp, 1800 Rpm, 56 FR, 115/208-230 Vac, 1 PH, TEFC, Rigid Base, General Purpose, 5KC46GN0569Y

C661, 1/2 Hp, 1800 Rpm, 56 FR, 115/208-230 Vac, 1 PH, TEFC, Rigid Base, General Purpose, 5KC46GN0569Y

General Specifications

Output HP :1/2 HP
Output KW :0.37 kW
Frequency :60 Hz
Voltage :115/208-230 V
Current :9.0,4.5-4.5 A
Speed :1725 RPM
Service Factor :1.15
Phase :1
Efficiency :61 %
Duty :Continous
Insulation Class :B
KVA Code :N
Frame :56
Enclosure :Totally Enclosed Fan Cooled
Overload Protector :MAN
Ambient Temperature :40 °C
Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203
UL :Recognized
CSA :Yes
CE :N
Technical Specifications
Electrical Type :Capacitor Start Induction Run
Starting Method :SM
Poles :4
Rotation :Counterclockwise/Clockwise
Mounting :Rigid Base
Motor Orientation :ANY
Drive End Bearing :BALL
Opp Drive End Bearing :BALL
Frame Material :Rolled Steel
Overall Length :11.83 in
Frame Length :6.55 in
Shaft Diameter :0.63 in
Shaft Extension :1.88 in
UPC :722856008374
