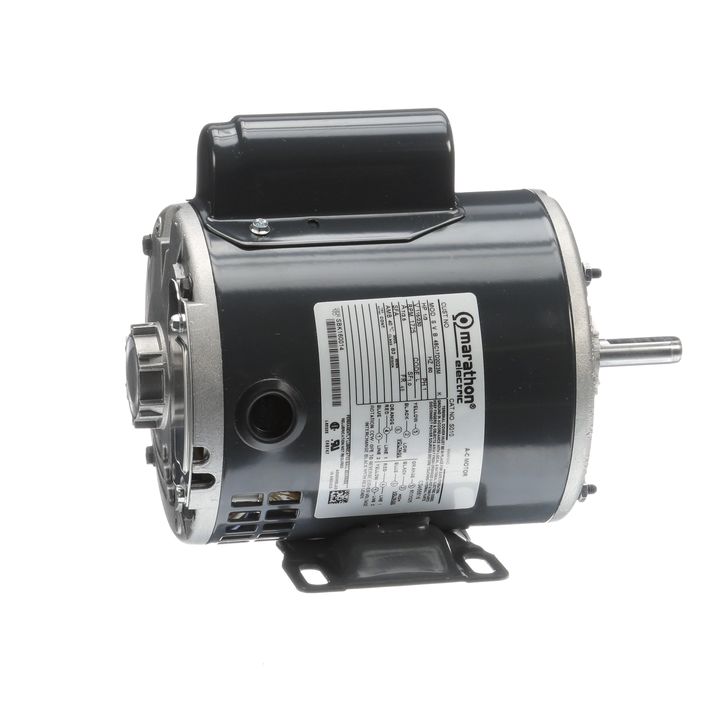

Marathon Electric C663, 1 Hp, 3600 Rpm, 56 FR, 115/230 Vac, 1 PH, TEFC, Rigid Base, General Purpose, 5KC49NN2419Y

C663, 1 Hp, 3600 Rpm, 56 FR, 115/230 Vac, 1 PH, TEFC, Rigid Base, General Purpose, 5KC49NN2419Y

General Specifications

Output HP :1 HP
Output KW :0.75 kW
Frequency :60 Hz
Voltage :115/230 V
Current :13.2,6.6 A
Speed :3450 RPM
Service Factor :1.25
Phase :1
Efficiency :68 %
Duty :Continous
Insulation Class :B
KVA Code :L
Frame :56
Enclosure :Totally Enclosed Fan Cooled
Overload Protector :MAN
Ambient Temperature :40 °C
Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203
UL :Recognized
CSA :Yes
CE :N
Technical Specifications
Electrical Type :Capacitor Start Induction Run
Starting Method :SM
Poles :2
Rotation :Counterclockwise/Clockwise
Mounting :Rigid Base
Motor Orientation :ANY
Drive End Bearing :BALL
Opp Drive End Bearing :BALL
Frame Material :Rolled Steel
Overall Length :12.43 in
Frame Length :7.15 in
Shaft Diameter :0.63 in
Shaft Extension :1.88 in
UPC :722856008718
