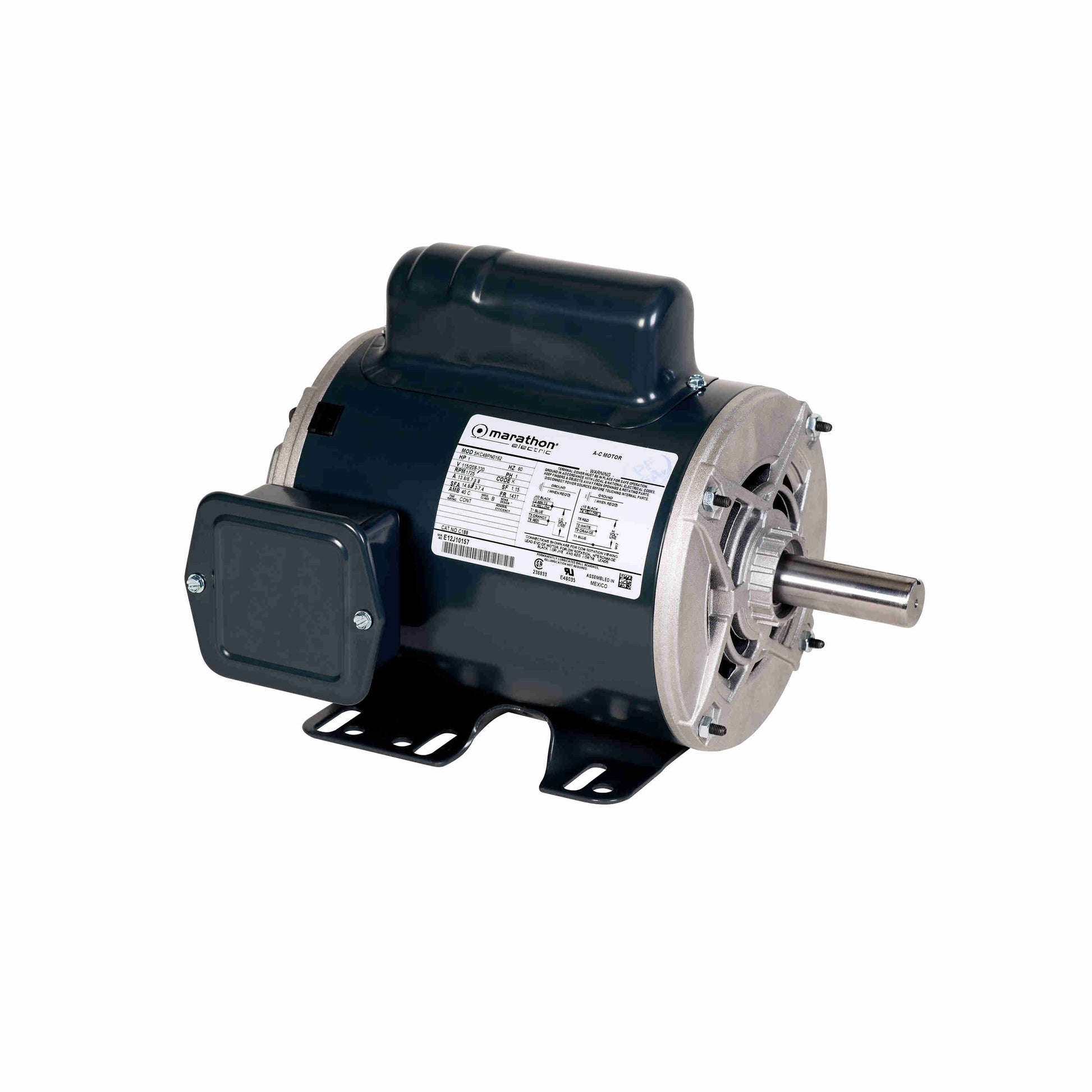

Marathon Electric C702A, 1 HP, 3600 RPM, 56 FR, 115/230 V, 1 PH, Dripproof, Rigid Base, General Purpose, Manuel Over Load, 56B34D99009.

C702A, 1 HP, 3600 RPM, 56 FR, 115/230 V, 1 PH, Dripproof, Rigid Base, General Purpose, Manuel Over Load, 56B34D99009.

Engineering Data

General Specifications
Model : 056B34D99009
Catalog No : C702A
Part Description : MODEL-CFHP-56FR
Category : Open Drip Proof (ODP)
Stock : No

Nameplate Specifications

Output HP : 1 Hp
Output KW : 0.75 kW
Frequency : 60 Hz
Voltage : 115/230 V
Current : 8.8/4.4 A
Speed : 3450 rpm
Service Factor : 1.15
Phases : 1
Efficiency : 80.5 %
Duty : CONTINUOUS
Insulation Class : B
Design Code : N
KVA Code : J
Frame : 56
Enclosure : DP
Overload Protector : MANUAL
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y
CE : Y
IP Code : 22

Technical Specifications

Electrical Type : CAP START CAP RUN
Starting Method : ACROSS THE LINE
Poles : 2
Rotation : SELECTIVE CCW
Mounting : RIGID
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL
Shaft Type : STANDARD 56
Overall Length : 12.33 in
Frame Length : 6.375 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.89 in
Assembly/Box Mounting : F1 ONLY
Weight : 31.00 LB
