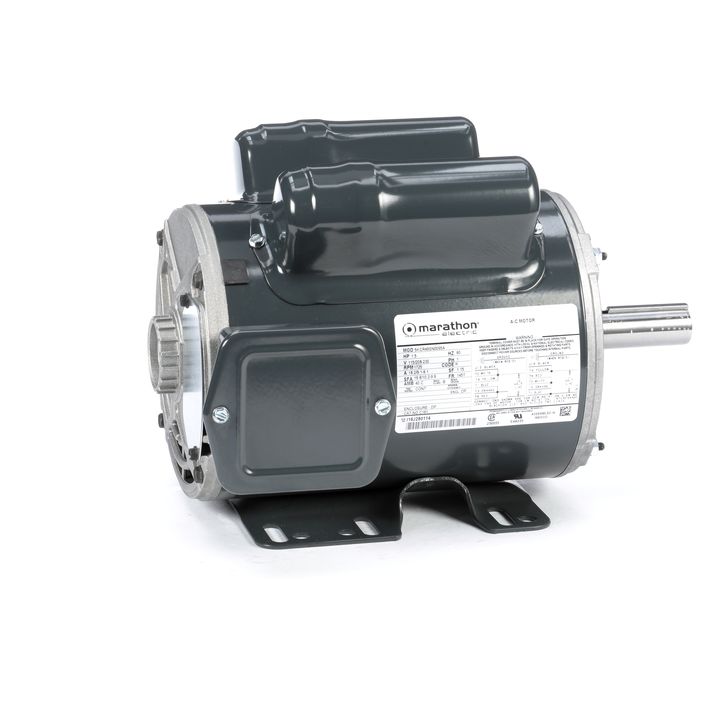

Marathon Electric CG105A, 56B17D11038, 1/3 Hp, 1800 RPM, 56 FR, 115/230 V, 1 PH, Dripproof, Rigid Base, Special Purpose

CG105A, 56B17D11038, 1/3 Hp, 1800 RPM, 56 FR, 115/230 V, 1 PH, Dripproof, Rigid Base, Special Purpose

General Specifications

Model : 056B17D11038
Catalog No : CG105A
Part Description : 0.33,1800,DP,56,1/60/115/230
Category : Open Drip Proof (ODP)
Stock : No

Nameplate Specifications

Output HP : 0.33 Hp
Output KW : 0.25 kW
Frequency : 60 Hz
Voltage : 115/230 V
Current : 3.8/1.9 A
Speed : 1725 rpm
Service Factor : 1.35
Phases : 1
Efficiency : 72.4 %
Duty : CONTINUOUS
Insulation Class : B
Design Code : NO DESIGN CODE
KVA Code : L
Frame : 56
Enclosure : DP
Overload Protector : MANUAL
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y
CE : Y
IP Code : 12

Technical Specifications

Electrical Type : CAP START CAP RUN
tarting Method : ACROSS THE LINE
Poles : 4
Rotation : SELECTIVE CCW
Mounting : RIGID
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL
Shaft Type : STANDARD 56
Overall Length : 10.97 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.97 in
Assembly/Box Mounting : F1 ONLY
