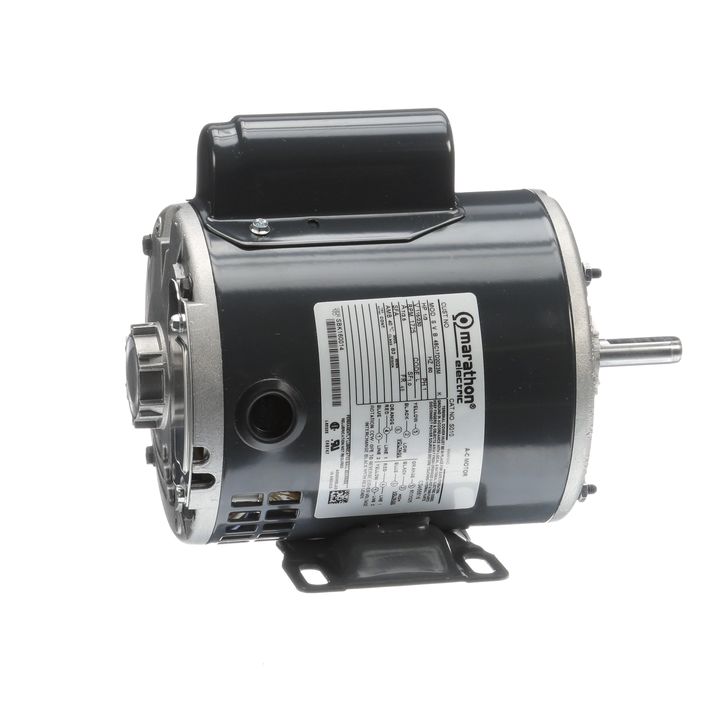

Marathon Electric CG111, 3/4 Hp, 3600 RPM, 48 FR, 115/230 V, 1 PH, Dripproof, Rigid Base, Special Purpose, 5KC37LN91.

CG111, 3/4 Hp, 3600 RPM, 48 FR, 115/230 V, 1 PH, Dripproof, Rigid Base, Special Purpose, 5KC37LN91.

Engineering Data

General Specifications
Model : 5KC37LN91
Catalog No : CG111
Part Description : 3/4,3600/1800,DP,48,115/230
Category : Open Drip Proof (ODP)
Stock : Yes

Nameplate Specifications

Output HP : 0.75 Hp
Output KW : 0.56 kW
Frequency : 60 Hz
Voltage : 115/230 V
Current : 11.2,5.6 A
Speed : 3450 rpm
Service Factor : 1
Phases : 1
Efficiency : 66 %
Duty : CONT
Insulation Class : B KVA
Code : J
Frame : 48
Enclosure : DP
Overload Protector : N/R
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes
CE : N

Technical Specifications

Electrical Type : Capacitor start(CSIR)
Starting Method : SM
Poles : 2
Rotation : CCW/CW
Mounting : WB
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 10.06 in
Frame Length : 6.62 in
Shaft Diameter : 0.5 in
Shaft Extension : 1.5 in
UPC : 722856007025
Weight : 19.00 LB
