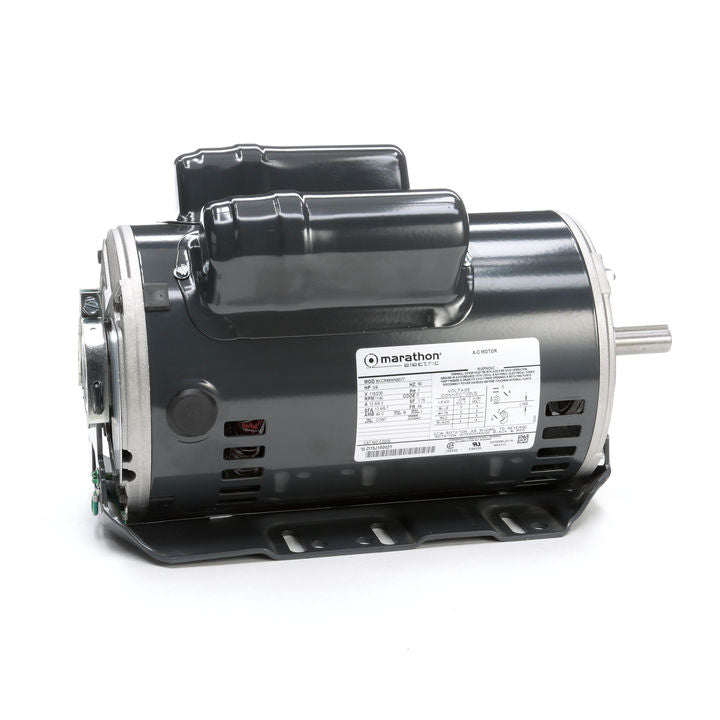

Marathon Electric CG232, 3/4 Hp, 1140 RPM, 56 FR, 115/230 V, 1 PH, Dripproof, Resilient Base, Fan and Blower, 5KCR49WN6077.

CG232, 3/4 Hp, 1140 RPM, 56 FR, 115/230 V, 1 PH, Dripproof, Resilient Base, Fan and Blower, 5KCR49WN6077.

General Specifications

Model : 5KCR49WN6077
Catalog No : CG232
Part Description : 3/4,1200,DP,56,1/60/115/230
Category : Open Drip Proof (ODP)
Stock : Yes

Nameplate Specifications

Output HP : 0.75 Hp
Output KW : 0.56 kW
Frequency : 60 Hz
Voltage : 115/230 V
Current : 12.6,6.3 A
Speed : 1140 rpm
Service Factor : 1.15
Phases : 1
Efficiency : 59.5 %
Duty : CONT
Insulation Class : B
Design Code : L
KVA Code : K
Frame : 56
Enclosure : DP
Overload Protector : N/R
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes
CE : N

Technical Specifications

Electrical Type : Capacitor Start Capacitor Run(CSCR)
Starting Method : SM
Poles : 6
Rotation : CCW/CW
Mounting : RB
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 13.96 in
Frame Length : 9.63 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.88 in
UPC : 722856007438
Weight : 42.00 LB
