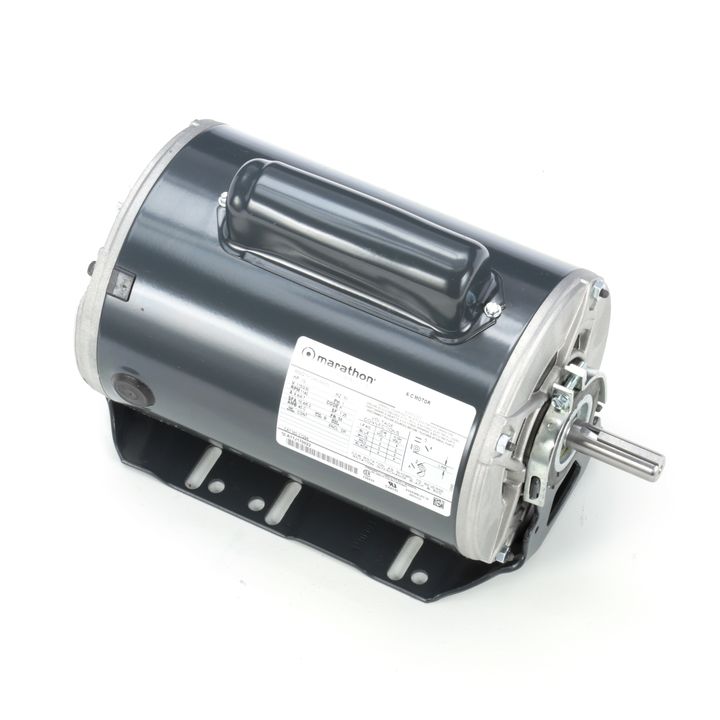

Marathon Electric CG236, 5KC49PN0155X, 1 Hp, 1725 Rpm, 56 FR, 115/230 V, 1 PH, Dripproof, Resilient Base, Fan and Blower Duty Motor

Marathon Electric CG236, 5KC49PN0155X, 1 Hp, 1725 Rpm, 56 FR, 115/230 V, 1 PH, Dripproof, Resilient Base, Fan and Blower Duty Motor

General Specifications

Model : 5KC49PN0155X
Catalog No : CG236
Part Description : 1,1725,DP,56,1/60/115/230
Category : Open Drip Proof (ODP)
Stock : Yes

Nameplate Specifications

Output HP : 1 Hp
Output KW : 0.75 kW
Frequency : 60 Hz
Voltage : 115/230 V
Current : 13.6,6.8 A
Speed : 1725 rpm
Service Factor : 1.15
Phases : 1
Efficiency : 66.6 %
Duty : CONT
Insulation Class : B
KVA Code : K
Frame : 56
Enclosure : DP
Overload Protector : AUTO
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes
CE : N

Technical Specifications

Electrical Type : Capacitor start(CSIR)
Starting Method : SM
Poles : 4
Rotation : CCW/CW
Mounting : RB
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 11.38 in
Frame Length : 7.15 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.88 in
UPC : 722856007445
Weight : 30.00 LB
