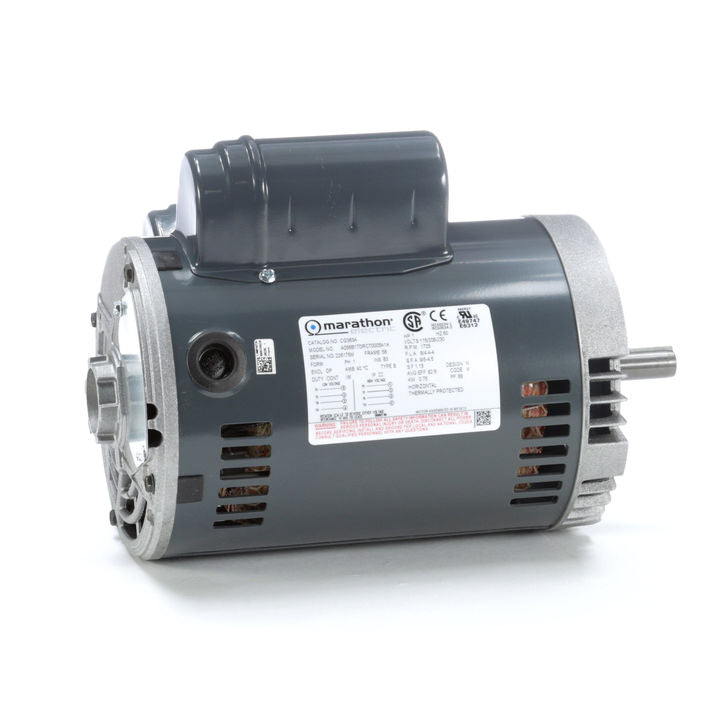

Marathon Electric CG363A, 1 Hp, 1800 RPM, 56C FR, 115/208-230 V, 1 PH, Dripproof, C-Face Footless, General Purpose, 056B17DRC70005A1

CG363A, 1 Hp, 1800 RPM, 56C FR, 115/208-230 Vac, 1 PH, Dripproof, C-Face Footless, General Purpose, 056B17DRC70005A1

General Specifications

Model : 056B17DRC70005A1
Catalog No : CG363A
Part Description : 1,1725,DP,56,1,60,115/208-230
Category : Open Drip Proof (ODP)
Stock : Yes

Nameplate Specifications

Output HP : 1 Hp
Output KW : 0.75 kW
Frequency : 60 Hz
Voltage : 115/208-230 V
Current : 8/4.4-4 A
Speed : 1725 rpm
Service Factor : 1.15
Phases : 1
Efficiency : 82.6 %
Duty : CONTINUOUS
Insulation Class : B
Design Code : N
KVA Code : K
Frame : 56C
Enclosure : DP
Overload Protector : AUTOMATIC
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y
CE : Y
IP Code : 22

Technical Specifications

Electrical Type : CAP START CAP RUN
Starting Method : ACROSS THE LINE
Poles : 4
Rotation : SELECTIVE CCW
Mounting : ROUND
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp
Drive End Bearing : BALL Frame
Material : ROLLED STEEL
Shaft Type : STANDARD 56
Overall Length : 12.31 in
Frame Length : 8.15 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.87 in
Assembly/Box Mounting : F1 ONLY
