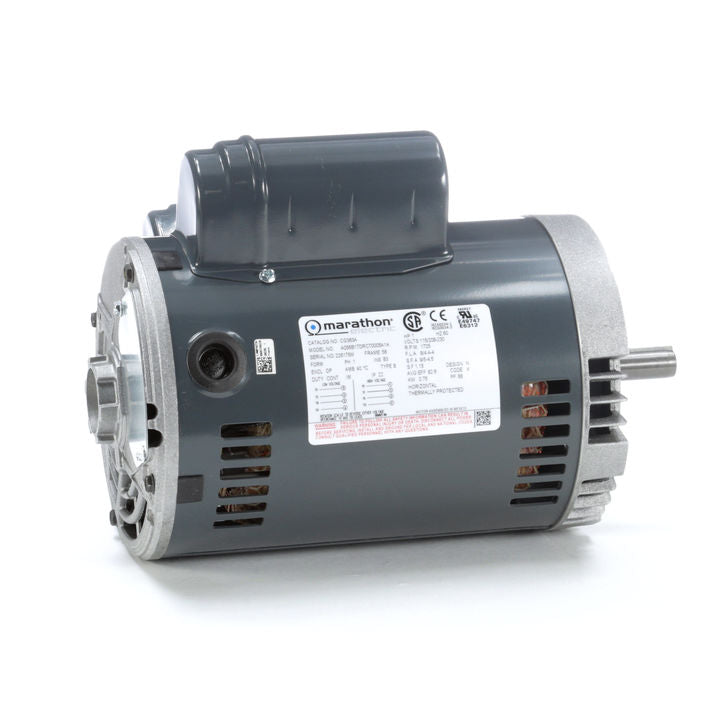

Marathon Electric CG382, 1/4 Hp, 1800 RPM, 48 FR, 115 Vac, 1 PH, Dripproof, WB, Capacitor Start, Instant Reversing Motors, 5KC35GNA488.

CG382, 1/4 Hp, 1800 RPM, 48 FR, 115 Vac, 1 PH, Dripproof, WB, Capacitor Start, Instant Reversing Motors, 5KC35GNA488.

Engineering Data

Nameplate Specifications

Output HP : 0.25 Hp
Output KW : 0.19 kW
Frequency : 60 Hz
Voltage : 115 V
Current : 5.2 A
Speed : 1725 rpm
Service Factor : 1.35
Phases : 1
Efficiency : 52.6 %
Duty : CONT
Insulation Class : B
KVA Code : M
Frame : 48
Enclosure : DP
Overload Protector : N/R
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes
CE : N

Technical Specifications

Electrical Type : Capacitor start(CSIR)
Starting Method : IR
Poles : 4
Rotation : INSREV
Mounting : WB
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 9.57 in
Frame Length : 5.79 in
Shaft Diameter : 0.5 in
Shaft Extension : 1.5 in
UPC : 722856042750
Weight : 14.00 LB
