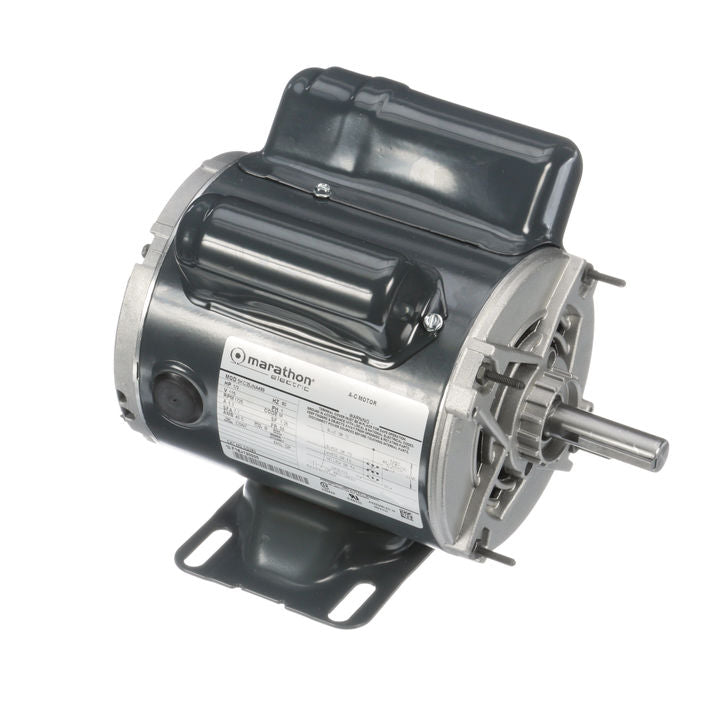

Marathon Electric CG384, 1/3 Hp, 1800 RPM, 56 FR, 115 Vac, 1 PH, Dripproof, WB, Instant Reversing Motors, 5KC35JNA489Y.

CG384, 1/3 Hp, 1800 RPM, 56 FR, 115 Vac, 1 PH, Dripproof, WB, Instant Reversing Motors, 5KC35JNA489Y.

General Specifications

Model : 5KC35JNA489Y
Catalog No : CG384
Part Description : 1/3,1725,DP,56,1/60/115
Category : Instant Reversing
Stock : Yes

Nameplate Specifications

Output HP : 0.33 Hp
Output KW : 0.25 kW
Frequency : 60 Hz
Voltage : 115 V
Current : 6.3 A
Speed : 1725 rpm
Service Factor : 1.35
Phases : 1
Efficiency : 57.7 %
Duty : CONT
Insulation Class : B
KVA Code : M
Frame : 56
Enclosure : DP
Overload Protector : MAN
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes
CE : N

Technical Specifications

Electrical Type : Capacitor start(CSIR)
Starting Method : SS
Poles : 4
Rotation : INSREV
Mounting : WB
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 9.89 in
Frame Length : 5.79 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.88 in
UPC : 722856042774
Weight : 16.00 LB
