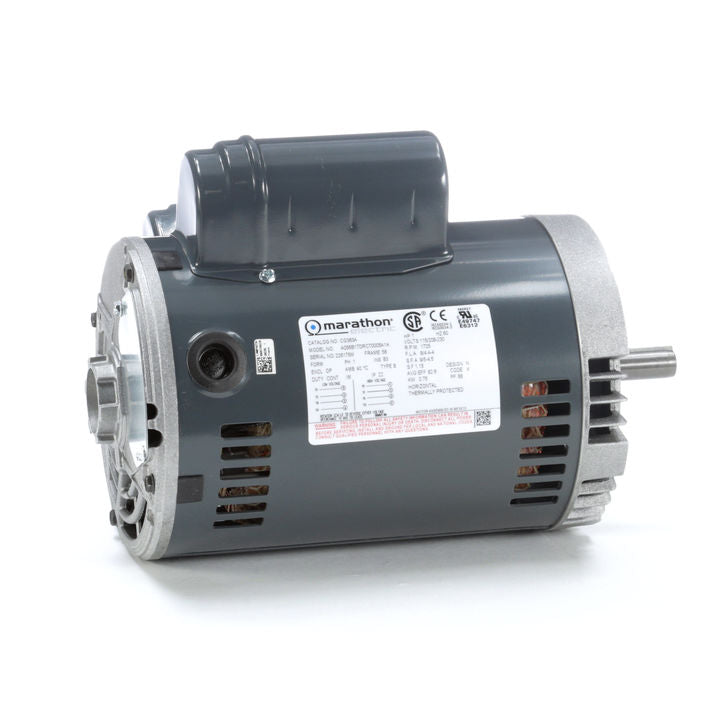

Marathon Electric CG732, 3/4 Hp, 2900 Rpm, 56C FR, 110/220 Vac, 1 PH, Dripproof, C-Face Footless, 5KC39RN114T

CG732, 3/4 Hp, 2900 Rpm, 56C FR, 110/220 Vac, 1 PH, Dripproof, C-Face Footless, 5KC39RN114T

General Specifications

Output HP:3/4 Hp
Output KW:0.56 kW
Frequency:50 Hz
Voltage:110/220 V
Current:9.8,4.9 A
Speed:2850 rpm
Service Factor:1.5
Phase:1
Efficiency:72.7 %
Power Factor:0
Duty:Continuous
Insulation Class:B
KVA Code:K
Frame:56C
Enclosure:Drip Proof
Thermal Protection:AUTO
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Yes
CE:N
Technical Specifications
Electrical Type:Capacitor Start Induction Run
Starting Method:SM
Poles:2
Rotation:Clockwise/Counterclockwise
Mounting:Round
Motor Orientation:ANY
Drive End Bearing:LOCKED
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Overall Length:12.6 in
Frame Length:8.5 in
Shaft Diameter:0.63 in
