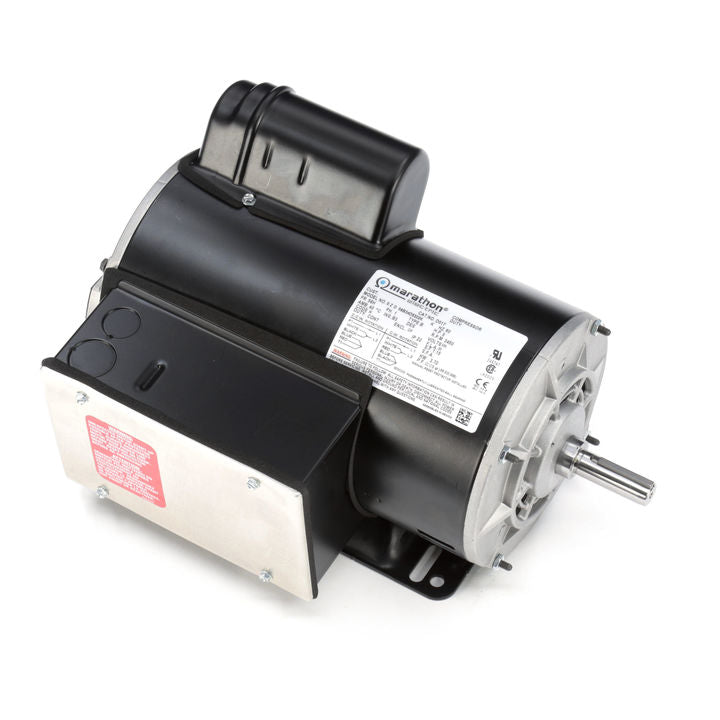

Marathon Electric D017, 5 Hp, 3600 Rpm, 56H FR, 230 Vac, 1 PH, Dripproof, Rigid Base, General Purpose, Manual Over Load, 056B34D5302.

D017, 5 Hp, 3600 Rpm, 56H FR, 230 Vac, 1 PH, Dripproof, Rigid Base, General Purpose, Manual Over Load, 056B34D5302.

Engineering Data

Output HP:5 Hp
Output KW:3.7 kW
Frequency:60 Hz
Voltage:230 V
Current:20.0 A
Speed:3450 rpm
Service Factor:1.15
Phase:1
Efficiency:84 %
Power Factor:98.6
Duty:Continuous
Insulation Class:B
Design Code:NO DESIGN CODE
KVA Code:H
Frame:56H
Enclosure:Drip Proof
Thermal Protection:Manual
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6205
UL:Recognized ( Not Protector)
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:2
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:13.94 in
Frame Length:10.06 in
Shaft Diameter:0.625 in
Shaft Extension:2.23 in
Assembly/Box Mounting:F1 ONLY
