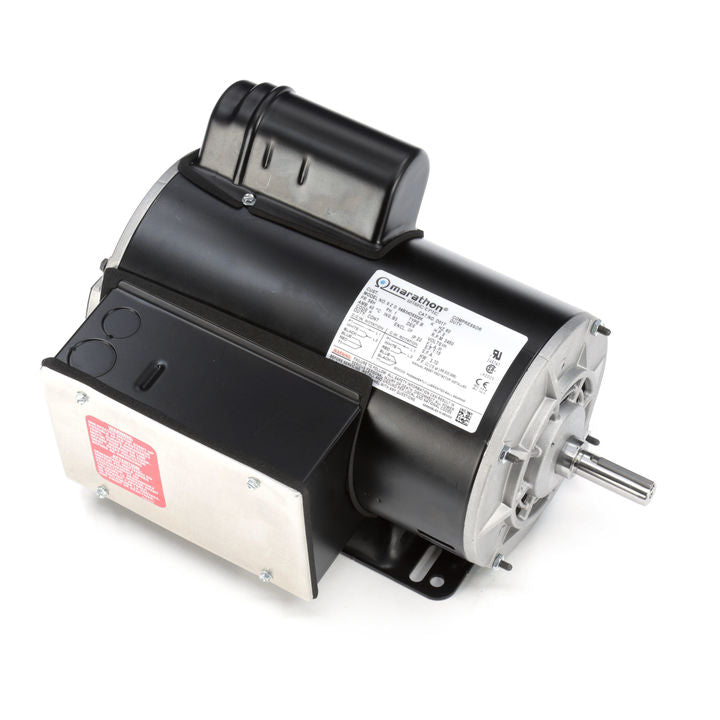

Marathon Electric D019, 056B34D15532, 5 Hp, 3600 RPM, 56HZ FR, 208/230 V, 1 PH, Dripproof, Rigid Base, Air Compressor

D019, 056B34D15532, 5 Hp, 3600 RPM, 56HZ FR, 208/230 V, 1 PH, Dripproof, Rigid Base, Air Compressor

General Specifications

Model : 056B34D15532
Catalog No : D019
Part Description : 5,3600,DP,56H,1/60/230
Category : Air Compressor
Stock : Yes

Nameplate Specifications

Output HP : 5 Hp
Output KW : 3.7 kW
Frequency : 60 Hz
Voltage : 230 V
Current : 20 A
Speed : 3450 rpm
Service Factor : 1.15
Phases : 1
Efficiency : 84 %
Duty : CONTINUOUS Insulation
Class : B
Design Code : NO DESIGN CODE
KVA Code : H
Frame : 56H
Enclosure : DP
Overload Protector : MANUAL
Ambient Temperature : 40 °C
Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6205 UL : Recognized ( Not Protector)
CSA : Y
CE : Y
IP Code : 22

Technical Specifications

Electrical Type : CAP START CAP RUN
Starting Method : ACROSS THE LINE
Poles : 2 Rotation : SELECTIVE CCW Mounting : RIGID
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL
Shaft Type : STANDARD 56
Overall Length : 13.94 in
Frame Length : 10.06 in
Shaft Diameter : 0.63 in
Shaft Extension : 2.23 in
Assembly/Box Mounting : F1 ONLY
UPC : 722856048158
Weight : 55.00 LB
