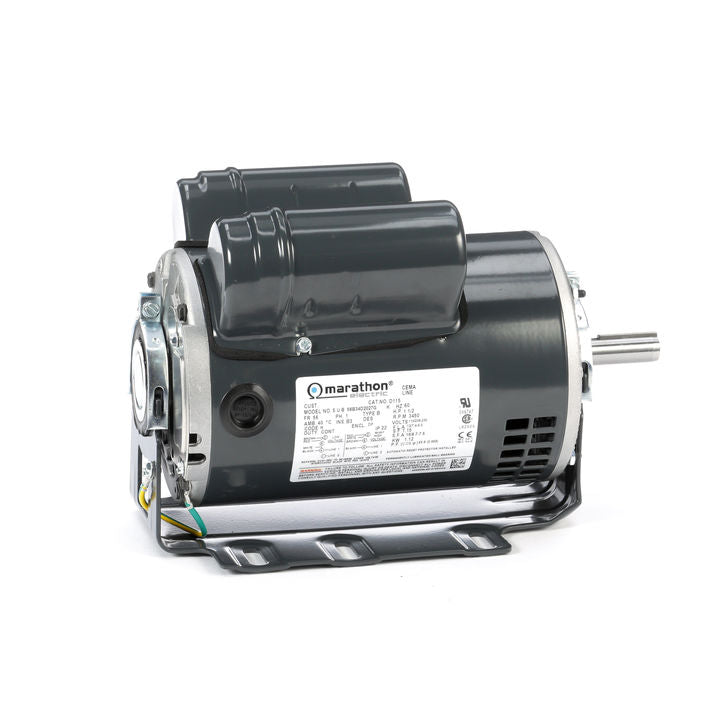

Marathon Electric D115, 056B34D2027, 1 1/2 Hp, 3450 Rpm, 56H FR, 115/208-230 Vac, 1 PH, Capacitor Start, Dripproof, Resilient Base

D115, 056B34D2027, 1 1/2 Hp, 3450 Rpm, 56H FR, 115/208-230 Vac, 1 PH, Capacitor Start, Dripproof, Resilient Base

Engineering Data

Horsepower: 1 1/2
Voltage: 115/208-230
RPM 3600
Full Load Amps - 13/7.4-6.5
FL Eff 78.7 %
SF 1.15

Nameplate Specifications

Output HP  1.5 Hp
Output KW 1.12 kW
Frequency  60 Hz
Voltage 115/208-230 V
Current 13/7.4-6.5 A
Speed  3450 rpm
Service Factor  1.15
Phases  1
Efficiency  78.7 %
Duty  CONTINUOUS
Insulation Class  B
Design Code  NO DESIGN CODE
KVA Code  H
Frame  56
Enclosure  DP
Overload Protector  AUTOMATIC
Ambient Temperature  40 °C
Drive End Bearing Size  6203
Opp Drive End Bearing Size  6203
UL  Recognized ( Not Protector)
CSA  Y
CE  Y
IP Code  22
Technical Specifications

Electrical Type  CAP START CAP RUN
Starting Method  ACROSS THE LINE
Poles  2
Rotation  SELECTIVE CCW
Mounting  RESILIENT BASE
Motor Orientation  HORIZONTAL
Drive End Bearing BALL
Opp Drive End Bearing  BALL
Frame Material  ROLLED STEEL
Shaft Type  STANDARD 56
Overall Length  11.72 in
Frame Length  7.75 in
Shaft Diameter  0.63 in
Shaft Extension  1.97 in
Assembly/Box Mounting  F1 ONLY
