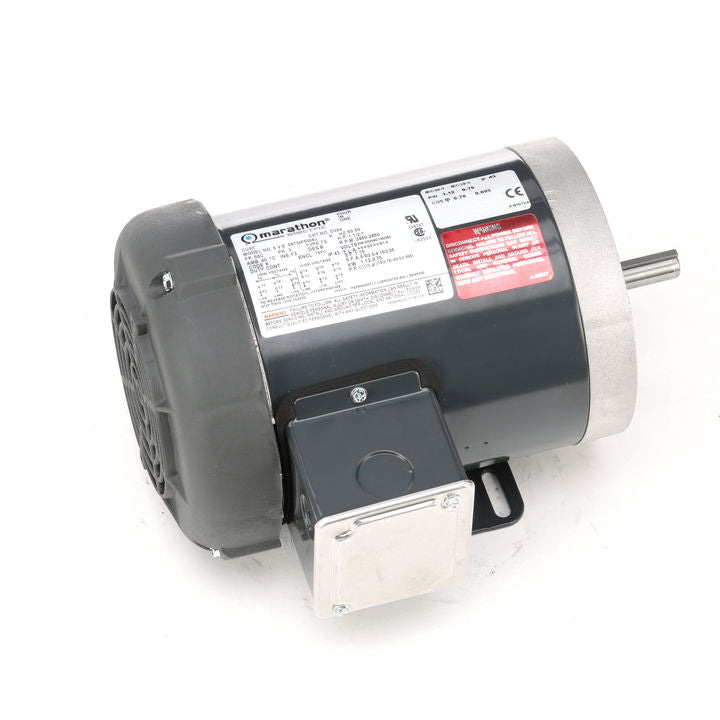

Marathon Electric D394A, 1 1/2 Hp, 3600 RPM, 56C FR, 230/460 V, 3 PH, Dripproof, C-Face Footed, General Purpose, 056T34F99017

D394A, 1 1/2 Hp, 3600 RPM, 56C FR, 230/460 V, 3 PH, Dripproof, C-Face Footed, General Purpose, 056T34F99017.

Engineering Data

Output HP : 1.50 Hp
Output KW : 1.1 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 4.0/2.0 A
Speed : 3450 rpm
Service Factor : 1.15
Phase : 3
Efficiency : 84 %
Duty : Continuous Insulation
Class : F Design
Code : B KVA
Code : M Frame : 56C
Enclosure : Totally Enclosed Fan Cooled Overload
Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y
CE : Y IP Code : 43
Technical Specifications
Electrical Type : Squirrel Cage Induction Run
Starting Method : Across The Line
Poles : 2
Rotation : Reversibl
Mounting : Bolt-on Base
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Shaft Type : NEMA 56
Overall Length : 13.31 in
Frame Length : 8.06 in
Shaft Diameter : 0.625 in
Shaft Extension : 2.06 in
Assembly/Box Mounting : F1 ONLY
