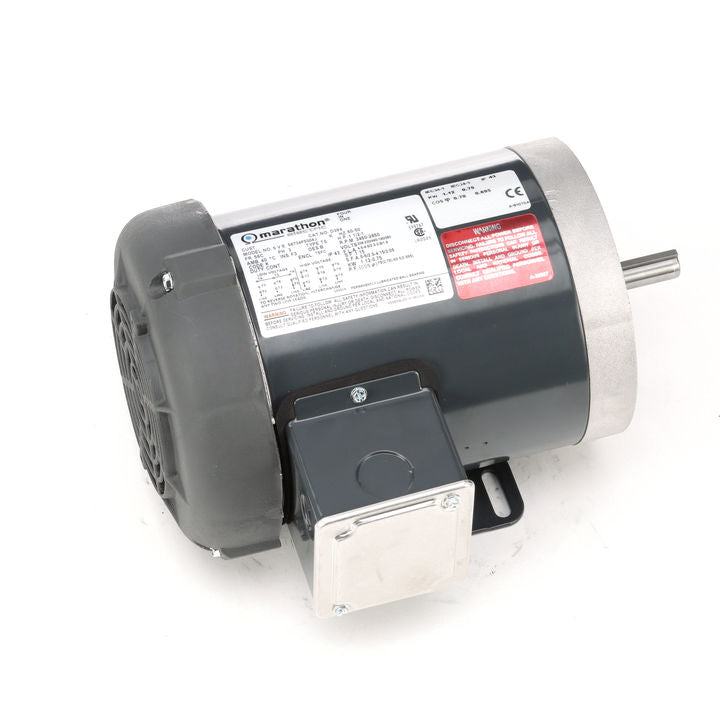

Marathon Electric D395A, 2 Hp, 3600 RPM, 56HC FR, 230/460 V, 3 PH, Dripproof, C-Face Footed, General Purpose, 056T34F99012.

D395A, 2 Hp, 3600 RPM, 56HC FR, 230/460 Vac, 3 PH, Dripproof, C-Face Footed, General Purpose, 056T34F99012.

Engineering Data

Output HP : 2 HP
Output KW : 1.5 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 5.0/2.5 A
Speed : 3450 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 85.5 %
Duty : Continuous
Insulation Class : F
Design Code : B
KVA Code : K
Frame : 56HC
Enclosure : Totally
Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y CE : Y IP Code : 43
Technical Specifications
Electrical Type : Squirrel Cage Induction Run
Starting Method : Across The Line
Poles : 2
Rotation : Reversible
Mounting : Bolt-on Base
Motor Orientation : HORIZONTAL OR UP OR DOWN
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Shaft Type : NEMA 56
Overall Length : 9.16 in
Frame Length : 9.06 in
Shaft Diameter : 0.625 in
Shaft Extension : 2.06 in
Assembly/Box Mounting : F1 ONLY
UPC : 722856050847
Weight : 45.00 LB
