Industrial Motors

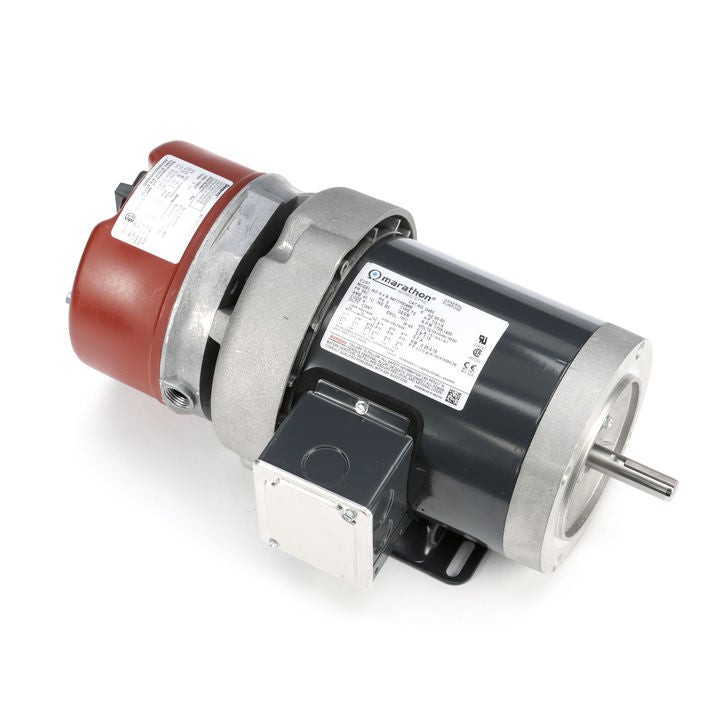

Marathon Electric D450, 1/3 Hp, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, Totally Enclosed, C-Face Footed, Brake Motor, 56T17F5348

Marathon Electric D450, 1/3 Hp, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, Totally Enclosed, C-Face Footed, Brake Motor, 56T17F5348

$1,700.00
$1,700.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,700.00 $1,615.00
Sale

D450, 1/3 Hp, 1800 Rpm, 56C FR, 208-230/460 Vac, 3 PH, Totally Enclosed, C-Face Footed, Brake Motor, 56T17F5348.

Engineering Data

60 Hertz
HP 1/3
Voltage 208-230/460
kW .25
FL Amps 1.5-1.6/.8
RPM 1800
FL Eff 68 % SF 1.15

50 Hertz
HP 1/4
Voltage 190/380
kW .19 FL Amps 1.4/.7
RPM 1500
FL Eff 68 %
SF 1.15

Phase 3
Insulation Class B
Frame 56C
Duty CONTINUOUS
Enclosure TEFC
Ambient 40
Mounting C-Face - Removable Base NEMA
Design B
Orientation HORIZONTAL
Starting Type ACROSS THE LINE
Assembly F1 ONLY KVA
Code N
Drive End Bearing BALL
IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size NONE
Opposite End Bearing Size NONE
Weight 30.4 LB lbs
CE N CSA Y
UL Recognized Construction
Thermal Protection

Brake Information
Make STEARNS
Series 56,000
Provisions ME SUPPLIED - ME MOUNT
Torque 3
