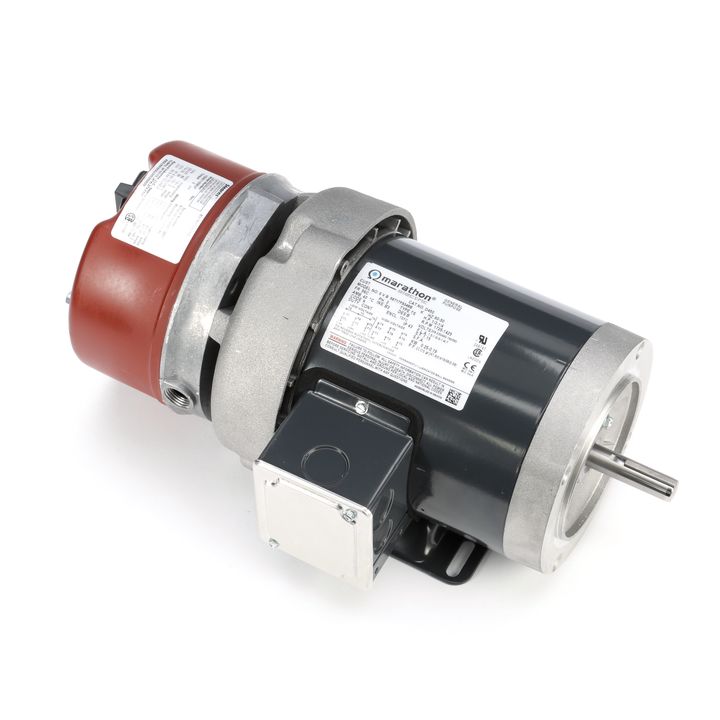

Marathon Electric D457A, 056T17F15677, 1 1/2 HP, 230/460 V, 3 PH, 56HC FR, 1800 RPM, C-Face Footed, Brake Motor

D457A, 1 1/2 HP, 1800 RPM, 56HC FR, 230/460 Vac, 3 PH, C-Face Footed, Brake Motor, 056T17F15677.

General Specifications

Model : 056T17F15677
Catalog No : D457A
Part Description : 1-1/2,1725,TEFC,56HC,3/60/208-230/460
Category : Brake
Stock : Yes

Nameplate Specifications

Output HP : 1.5 Hp
Output KW : 1.12 kW
Frequency : 60 Hz
Voltage : 208-230/460 V
Current : 5-4.8/2.4 A
Speed : 1725 rpm
Service Factor : 1.15
Phases : 3
Efficiency : 80 %
Duty : CONTINUOUS
Insulation Class : B
Design Code : B
KVA Code : K
Frame : 56HC
Enclosure : TEFC
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y
CE : Y
IP Code : 43

Technical Specifications

Electrical Type : SQ CAGE IND RUN
Starting Method : ACROSS THE LINE
Poles : 4
Rotation : REV
Mounting : RIGID
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp
Drive End Bearing : BALL
Frame Material : ROLLED STEEL
Shaft Type : STANDARD 56
Overall Length : 16.72 in
Frame Length : 7.06 in
Shaft Diameter : .63 in
Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY
UPC : 722856027740
