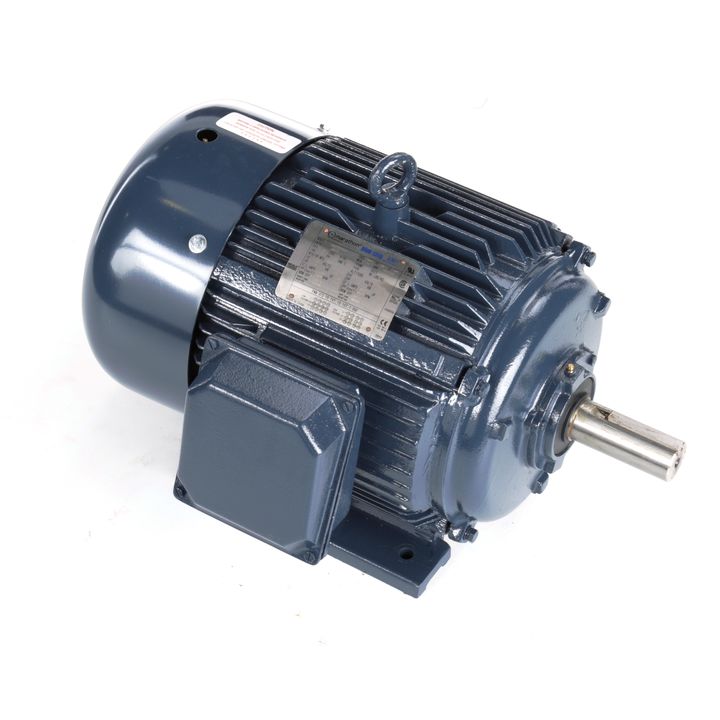

Marathon Electric E006, 256TTFC6081, 10 HP, 575 V, 3 PH, 256T FR, 1200 RPM, Rigid Base, General Purpose

Marathon Electric E006, 256TTFC6081, 10 HP, 575 V, 3 PH, 256T FR, 1200 RPM, Rigid Base, General Purpose

General Specifications

Model : 256TTFC6081
Catalog No : E006
Part Description : 10,1200,TEFC,256T,3/60/575
Category : Totally Enclosed Fan Cooled (TEFC)
Stock : No

Nameplate Specifications

Output HP : 10 Hp
Output KW : 7.5 kW
Frequency : 60 Hz
Voltage : 575 V
Current : 11.2 A
Speed : 1180 rpm
Service Factor : 1.15
Phases : 3
Efficiency : 91 %
Duty : CONTINUOUS
Insulation Class : F
Design Code : B
KVA Code : H
Frame : 256T
Enclosure : TEFC
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6309
Opp Drive End Bearing Size : 6308
UL : Recognized
CSA : Y
CE : Y
IP Code : 43

Technical Specifications

Electrical Type : SQ CAGE INV RATED
Starting Method : LINE OR INVERTER
Poles : 6
Rotation : REV
Mounting : RIGID
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : CAST IRON
Shaft Type : T
Overall Length : 24.92 in
Shaft Diameter : 1.63 in
Shaft Extension : 4.25 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856017093
