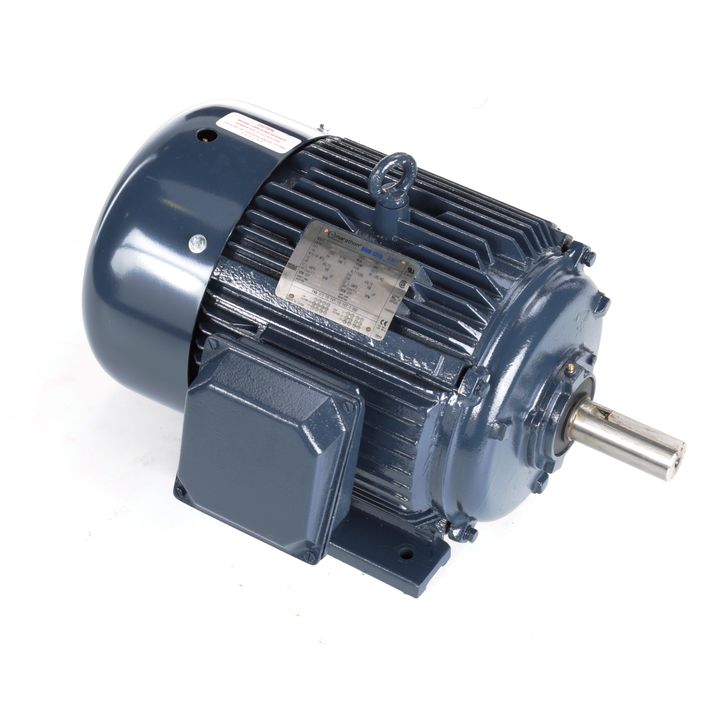

Marathon Electric E008, 286TTFC6081, 20 HP, 575 V, 3 PH, 286T FR, 1200 RPM, Rigid Base, General Purpose

Marathon Electric E008, 286TTFC6081, 20 HP, 575 V, 3 PH, 286T FR, 1200 RPM, Rigid Base, General Purpose

General Specifications

Model : 286TTFC6081
Catalog No : E008
Part Description : 20,1200,TEFC,286T,3/60/575
Category : Totally Enclosed Fan Cooled (TEFC)
Stock : No

Nameplate Specifications

Output HP : 20 Hp
Output KW : 14.9 kW
Frequency : 60 Hz
Voltage : 575 V
Current : 21 A
Speed : 1185 rpm
Service Factor : 1.15
Phases : 3
Efficiency : 92.4 %
Duty : CONTINUOUS
Insulation Class : F
Design Code : N (IEC) KVA
Code : G
Frame : 286T
Enclosure : TEFC
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6309
Opp Drive End Bearing Size : 6308
UL : Recognized
CSA : Y
CE : Y
IP Code : 43

Technical Specifications

Electrical Type : SQ CAGE INV RATED
Starting Method : LINE OR INVERTER
Poles : 6
Rotation : REV
Mounting : RIGID
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : CAST IRON
Shaft Type : T Overall Length : 27.83 in
Shaft Diameter : 1.88 in
Shaft Extension : 4.87 in
Assembly/Box Mounting : F1/F2
CAPABLE UPC : 722856017109
