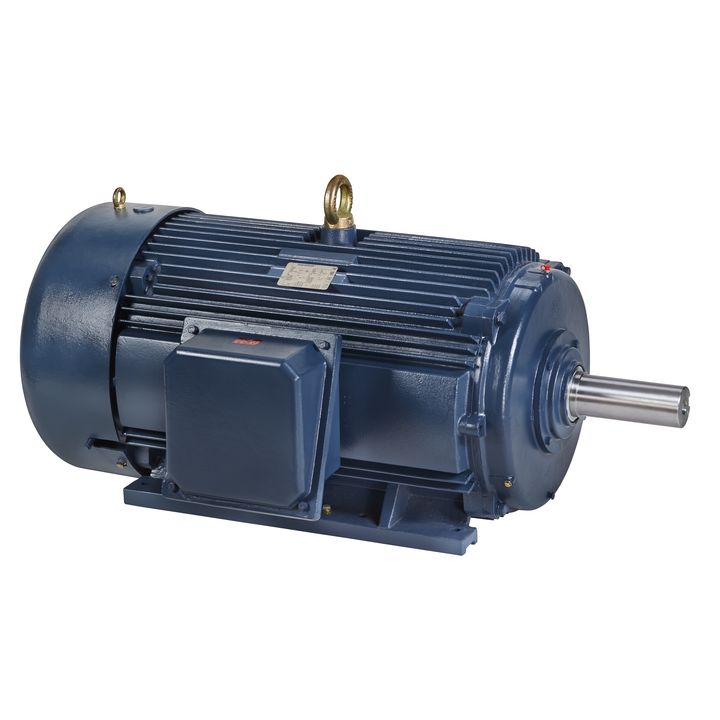

Marathon Electric E009, 324TTFC6081, 25 HP, 575 V, 3 PH, 324T FR, 1200 RPM, Rigid Base, General Purpose

Marathon Electric E009, 324TTFC6081, 25 HP, 575 V, 3 PH, 324T FR, 1200 RPM, Rigid Base, General Purpose

General Specifications

Model : 324TTFC6081
Catalog No : E009
Part Description : 25,1200,TEFC,324T,3/60/575
Category : Totally Enclosed Fan Cooled (TEFC)
Stock : No

Nameplate Specifications

Output HP : 25 Hp
Output KW : 18.7 kW
Frequency : 60 Hz
Voltage : 575 V
Current : 26.4 A
Speed : 1190 rpm
Service Factor : 1.15
Phases : 3
Efficiency : 93.6 %
Duty : CONTINUOUS
Insulation Class : F
Design Code : B
KVA Code : G Frame : 324T
Enclosure : TEFC
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6312
Opp Drive End Bearing Size : 6312
UL : Recognized
CSA : Y
CE : Y
IP Code : 43

Technical Specifications

Electrical Type : SQ CAGE INV RATED
Starting Method : LINE OR INVERTER
Poles : 6
Rotation : REV
Mounting : RIGID
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : CAST IRON
Shaft Type : T
Overall Length : 29.53 in
Shaft Diameter : 2.13 in
Shaft Extension : 5.25 in
Assembly/Box Mounting : F1/F2 CAPABLE
