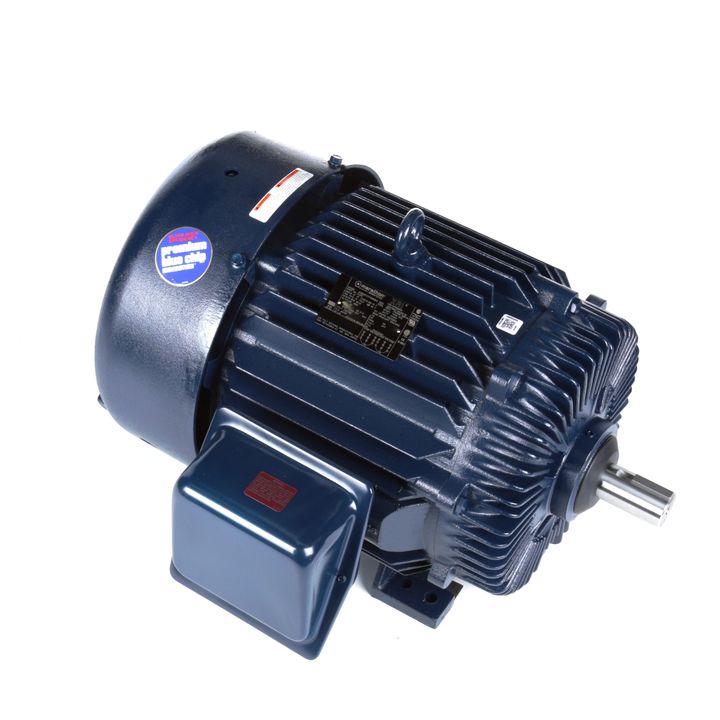

Marathon Electric E011, 324TSTFC6006, 40 HP, 575 V, 3 PH, 324TS FR, 3600 RPM, Rigid Base, General Purpose

Marathon Electric E011, 324TSTFC6006, 40 HP, 575 V, 3 PH, 324TS FR, 3600 RPM, Rigid Base, General Purpose

General Specifications

Model : 324TSTFC6006
Catalog No : E011
Part Description : 40,3600,TEFC,324TS,3/60/575
Category : Totally Enclosed Fan Cooled (TEFC)
Stock : Yes

Nameplate Specifications

Output HP : 40 Hp
Output KW : 30 kW
Frequency : 60 Hz
Voltage : 575 V
Current : 99-90/45 A
Speed : 3555 rpm
Service Factor : 1.15
Phases : 3
Efficiency : 93.6 %
Duty : CONTINUOUS
Insulation Class : F
Design Code : B
KVA Code : G
Frame : 324TS
Enclosure : TEFC
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6312
Opp Drive End Bearing Size : 6312
UL : Recognized
CSA : Y
CE : Y
IP Code : 43

Technical Specifications

Electrical Type : SQ CAGE INV RATED
Starting Method : LINE OR INVERTER
Poles : 2
Rotation : REV
Mounting : RIGID
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : CAST IRON
Shaft Type : TS
Overall Length : 28.03 in
Shaft Diameter : 1.88 in
Shaft Extension : 3.75 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856017673
