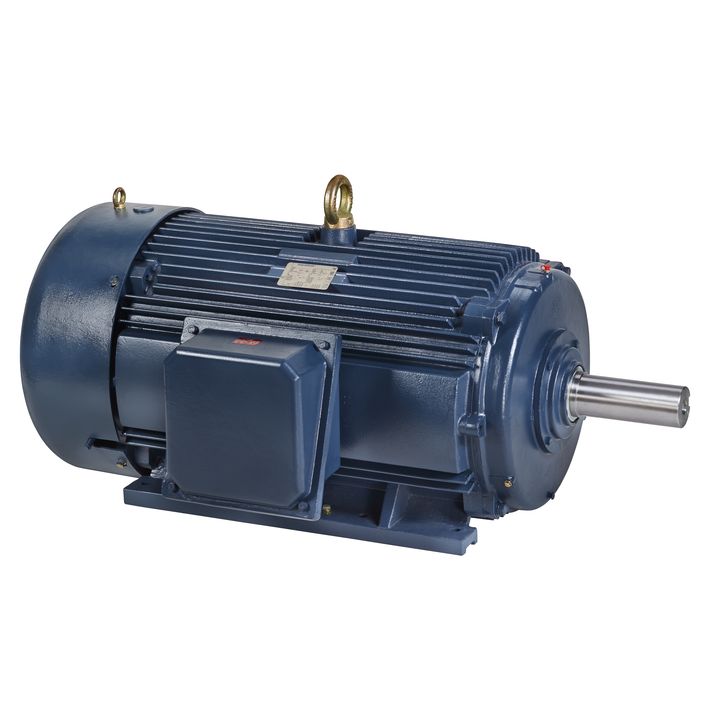

Marathon Electric E012, 364TTFC6081, 40 HP, 575 V, 3 PH, 324T FR, 1200 RPM, Rigid Base, General Purpose

Marathon Electric E012, 364TTFC6081, 40 HP, 575 V, 3 PH, 324T FR, 1200 RPM, Rigid Base, General Purpose

General Specifications

Model : 364TTFC6081
Catalog No : E012
Part Description : 40,1200,TEFC,364T,3/60/575
Category : Totally Enclosed Fan Cooled (TEFC)
Stock : No

Nameplate Specifications

Output HP : 40 Hp
Output KW : 30 kW
Frequency : 60 Hz
Voltage : 575 V
Current : 40.5 A
Speed : 1192 rpm
Service Factor : 1.15
Phases : 3
Efficiency : 94.1 %
Duty : CONTINUOUS
Insulation Class : F
Design Code : B
KVA Code : F
Frame : 364T
Enclosure : TEFC
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6313
Opp Drive End Bearing Size : 6313
UL : Recognized
CSA : Y
CE : Y
IP Code : 43

Technical Specifications

Electrical Type : SQ CAGE INV RATED
Starting Method : LINE OR INVERTER
Poles : 6
Rotation : REV
Mounting : RIGID
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : CAST IRON
Shaft Type : T
Overall Length : 32.32 in
Shaft Diameter : 2.38 in
Shaft Extension : 3.74 in
Assembly/Box Mounting : F1/F2
CAPABLE UPC : 722856017680
