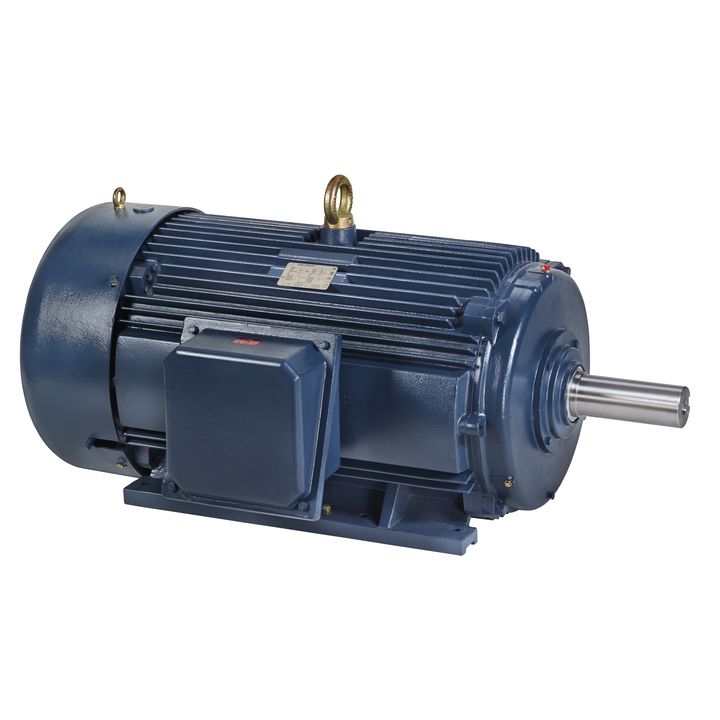

Marathon Electric E014, 365TTFC6081, 50 HP, 575 V, 3 PH, 365T FR, 1200 RPM, Rigid Base, General Purpose

Marathon Electric E014, 365TTFC6081, 50 HP, 575 V, 3 PH, 365T FR, 1200 RPM, Rigid Base, General Purpose

General Specifications

Model : 365TTFC6081
Catalog No : E014
Part Description : 50,1200,TEFC,365T,3/60/575
Category : Totally Enclosed Fan Cooled (TEFC)
Stock : No

Nameplate Specifications

Output HP : 50 Hp
Output KW : 37 kW
Frequency : 60 Hz
Voltage : 575 V
Current : 50.5 A
Speed : 1190 rpm
Service Factor : 1.15
Phases : 3
Efficiency : 94.1 %
Duty : CONTINUOUS
Insulation Class : F
Design Code : B
KVA Code : G
Frame : 365T
Enclosure : TEFC
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6313
Opp Drive End Bearing Size : 6313
UL : Recognized
CSA : Y
CE : Y
IP Code : 43

Technical Specifications

Electrical Type : SQ CAGE INV RATED
Starting Method : LINE OR INVERTER
Poles : 6
Rotation : REV
Mounting : RIGID
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp
Drive End Bearing : BALL
Frame Material : CAST IRON
Shaft Type : T
Overall Length : 32.32 in
Shaft Diameter : 2.38 in
Shaft Extension : 3.74 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856017703
