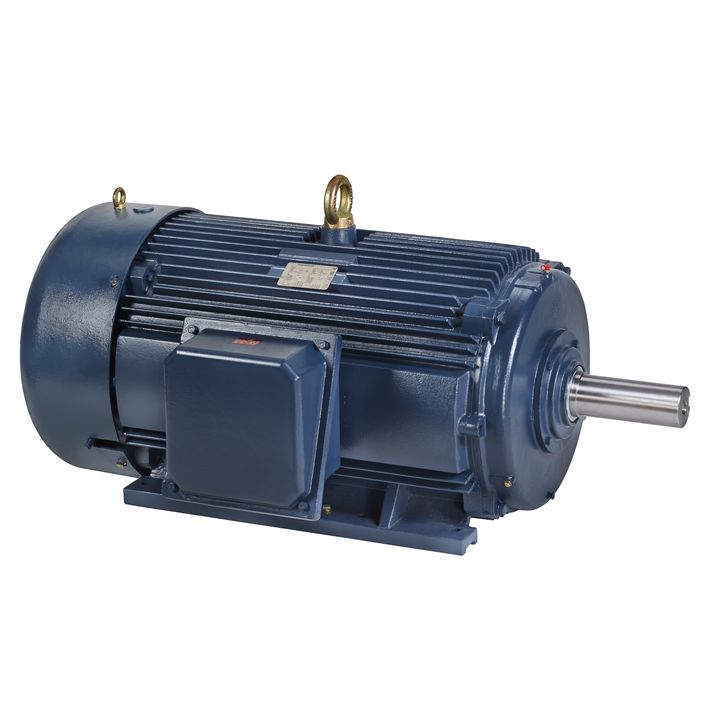

Marathon Electric E016, 365TSTFC6006, 75 HP, 575 V, 3 PH, 365TS FR, 3600 RPM, Rigid Base, General Purpose

Marathon Electric E016, 365TSTFC6006, 75 HP, 575 V, 3 PH, 365TS FR, 3600 RPM, Rigid Base, General Purpose

General Specifications

Model : 365TSTFC6006
Catalog No : E016
Part Description : 75,3600,TEFC,365TS,3/60/575
Category : Totally Enclosed Fan Cooled (TEFC)
Stock : Yes

Nameplate Specifications

Output HP : 75 Hp
Output KW : 56 kW
Frequency : 60 Hz
Voltage : 575 V
Current : 53.5 A
Speed : 3570 rpm
Service Factor : 1.15
Phases : 3
Efficiency : 94.1 %
Duty : CONTINUOUS
Insulation Class : F
Design Code : B
KVA Code : F
Frame : 365TS
Enclosure : TEFC
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6313
Opp Drive End Bearing Size : 6313
UL : Recognized
CSA : Y
CE : Y
IP Code : 43

Technical Specifications

Electrical Type : SQ CAGE INV RATED
Starting Method : Y
START D RUN OR INV
Poles : 2
Rotation : REV
Mounting : RIGID
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : CAST IRON
Shaft Type : TS
Overall Length : 31.18 in
Shaft Diameter : 1.88 in
Shaft Extension : 3.75 in
Assembly/Box Mounting : F1/F2
CAPABLE UPC : 722856017727
