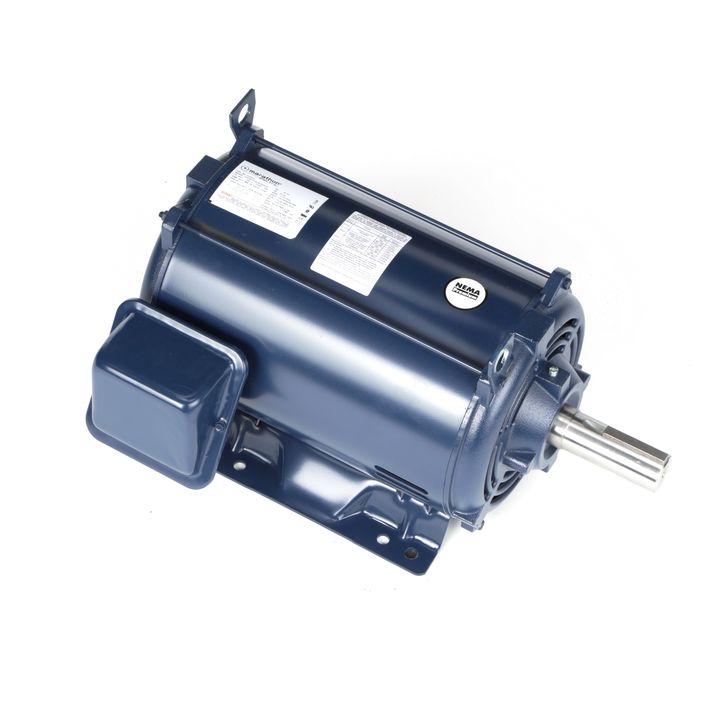

Marathon Electric E1002, 284TTDR16077, 15 HP, 230/460 V, 3 PH, 28/4T FR, 1200 RPM, Rigid Base, General Purpose

Marathon Electric E1002, 284TTDR16077, 15 HP, 230/460 V, 3 PH, 28/4T FR, 1200 RPM, Rigid Base, General Purpose

General Specifications

Model : 284TTDR16077
Catalog No : E1002
Part Description : 15,1200,DP,284T,3/60/230/460
Category : Open Drip Proof (ODP)
Stock : Yes

Nameplate Specifications

Output HP : 15 Hp
Output KW : 11.2 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 43/21.5 A
Speed : 1170 rpm
Service Factor : 1.15
Phases : 3
Efficiency : 91.7 %
Duty : CONTINUOUS
Insulation Class : F
Design Code : B
KVA Code : H
Frame : 284T
Enclosure : DP
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6311
Opp Drive End Bearing Size : 6207
UL : Recognized
CSA : Y
CE : Y
IP Code : 22

Technical Specifications

Electrical Type : SQ CAGE IND RUN
Starting Method : ACROSS THE LINE
Poles : 6
Rotation : REV
Mounting : RIGID
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL
Shaft Type : T
Overall Length : 24.25 in
Shaft Diameter : 1.88 in
Shaft Extension : 4.62 in
Assembly/Box Mounting : F1
ONLY UPC : 722856012555
