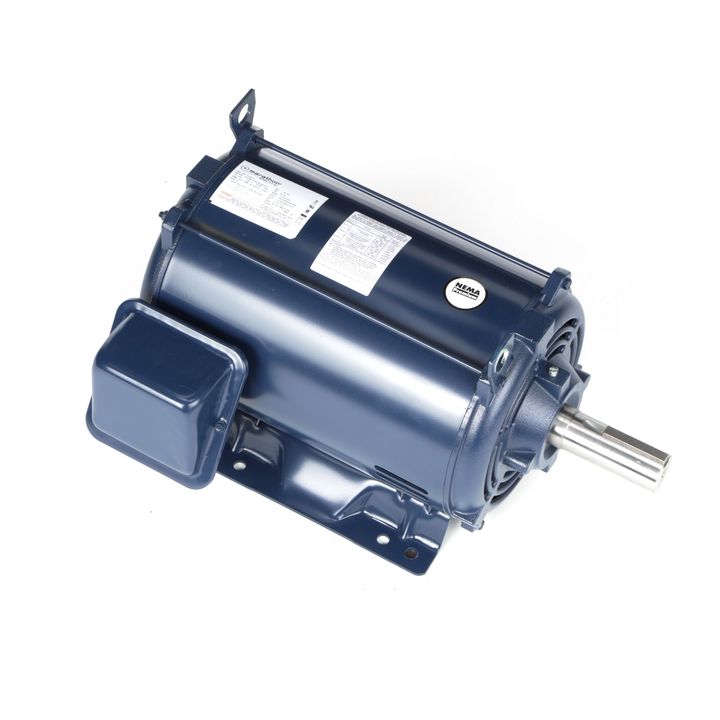

Marathon Electric E1008, 284TSTDR16003, 15 HP, 230/460 V, 3 PH, 284TS FR, 3600 RPM, Rigid Base, General Purpose

Marathon Electric E1008, 284TSTDR16003, 15 HP, 230/460 V, 3 PH, 284TS FR, 3600 RPM, Rigid Base, General Purpose

General Specifications

Model : 284TSTDR16003
Catalog No : E1008
Part Description : 30,3600,DP,284TS,3/60/230/460
Category : Open Drip Proof (ODP)
Stock : Yes

Nameplate Specifications

Output HP : 30 Hp
Output KW : 22.4 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 69.0/34.5 A
Speed : 3535 rpm
Service Factor : 1.15
Phases : 3
Efficiency : 91.7 %
Duty : CONTINUOUS
Insulation Class : F
Design Code : B
KVA Code : F
Frame : 284TS
Enclosure : DP
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6213
Opp Drive End Bearing Size : 6207
UL : Recognized
CSA : Y
CE : Y
IP Code : 22

Technical Specifications

Electrical Type : SQ CAGE IND RUN
Starting Method : ACROSS THE LINE
Poles : 2
Rotation : REV
Mounting : RIGID
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL
Shaft Type : TS
Overall Length : 22.85 in
Shaft Diameter : 1.63 in
Shaft Extension : 3.25 in
Assembly/Box Mounting : F1 ONLY
UPC : 7228560125
