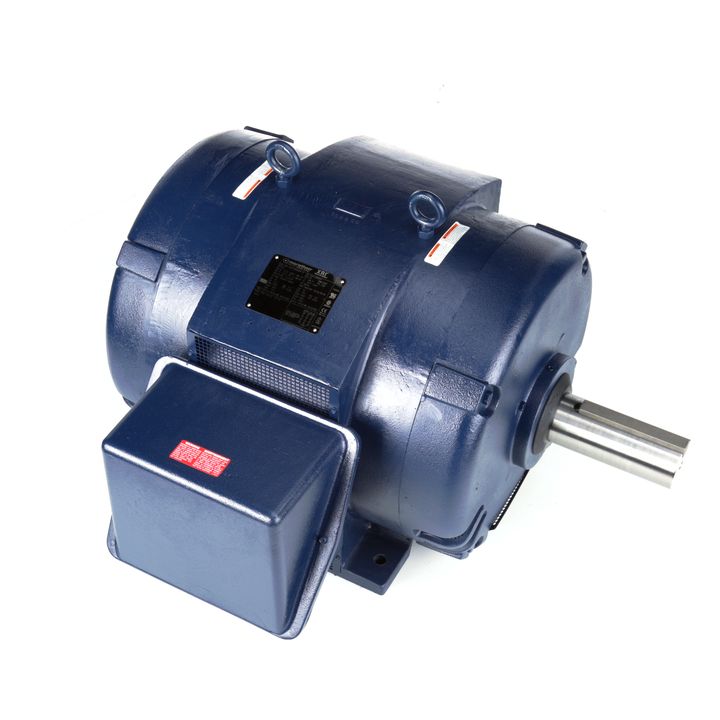

Marathon Electric E1010, 286TSTDR16002, 40 HP, 230/460 V, 3 PH, 286TS FR, 3600 RPM, Rigid Base, General Purpose

Marathon Electric E1010, 286TSTDR16002, 40 HP, 230/460 V, 3 PH, 286TS FR, 3600 RPM, Rigid Base, General Purpose

General Specifications

Model : 286TSTDR16002
Catalog No : E1010
Part Description : 40,3600,DP,286TS,3/60/230/460
Category : Open Drip Proof (ODP)
Stock : Yes

Nameplate Specifications

Output HP : 40 Hp
Output KW : 30 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 90/45 A
Speed : 3540 rpm
Service Factor : 1.15
Phases : 3
Efficiency : 92.4 %
Duty : CONTINUOUS
Insulation Class : F
Design Code : B
KVA Code : F
Frame : 286TS
Enclosure : DP
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6213
Opp Drive End Bearing Size : 6207
UL : Recognized
CSA : Y
CE : N
IP Code : 22

Technical Specifications

Electrical Type : SQ CAGE IND RUN
Starting Method : ACROSS THE LINE
Poles : 2
Rotation : REV
Mounting : RIGID
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL
Shaft Type : TS
Overall Length : 22.85 in
Shaft Diameter : 1.63 in
Shaft Extension : 3.25 in
Assembly/Box Mounting : F1/F2
CAPABLE UPC : 722856012616
